Product CatalogPart Number
F0509S-2WR3
Manufacturer
Mornsun America, LLCDescription
DC DC CONVERTER 9V 2W
Datasheet
DatasheetPackage
7-SIP Module, 4 Leads
In Stock
49,948 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
F0509S-2WR3
F0509S-2WR3
lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 9V 222mA 4.5V - 5.5V Input
Quick Inquiry
F0509S-2WR3
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Tube |
| RoHS Status | |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 9V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 222mA |
| Power (Watts) | 1.9 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 85% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 7-SIP Module, 4 Leads |
| Size / Dimension | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | 3 kV |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | F0509D-2WR3 | F0509LT-1WR3 | F0509N-1WR3 | F0509S-1WR3 |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant |
| Description | DC DC CONVERTER 9V 2W | ISOLATED MODULE DC DC CONVERTER | DC DC CONVERTER 9V 1W | DC DC CONVERTER 9V 1W |
| Series | ||||
| Packaging | F0509D-2WR3 (2W) | F0509LT-1WR3 (1W) | F_N-1WR3 (1W) | F_S-1WR3 (1W) |
Customers Also Interested in
Recommended Products

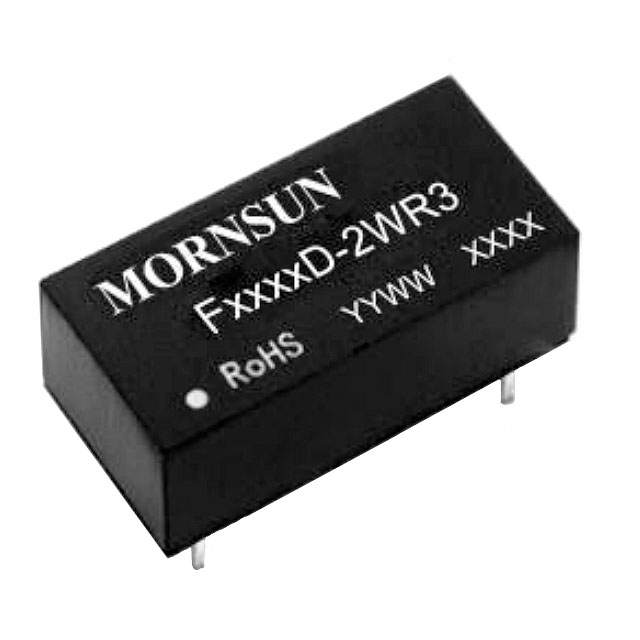

F0509D-2WR3
Mornsun America, LLC
F0509LT-1WR3
Mornsun America, LLC
F0509N-1WR3
Mornsun America, LLC
F0509S-1WR3
Mornsun America, LLC

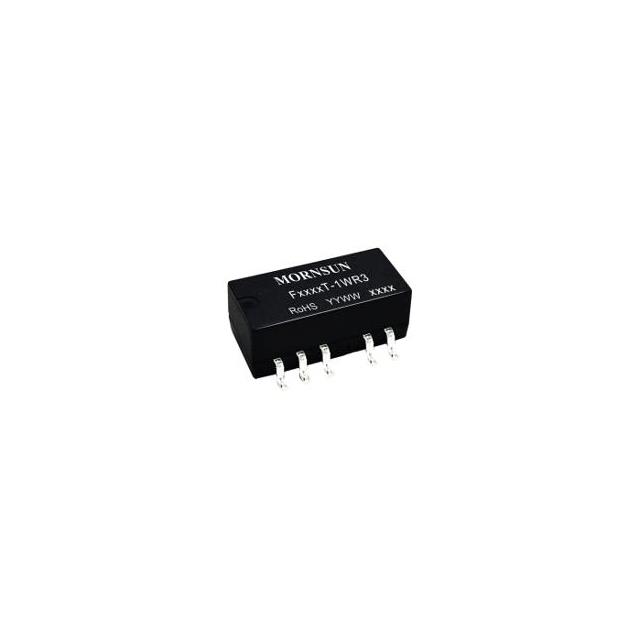

F0509T-1WR3
