F1A1-383815-270M

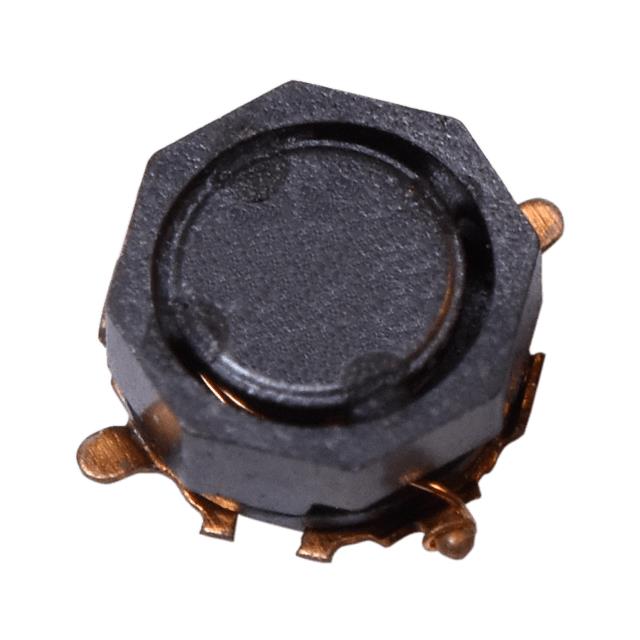

lmages are for reference only.F1A1-383815-270M
FIXED IND 27.0UH 530MA 675 MOHM
DatasheetNonstandard
47,353 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
27 µH Shielded Drum Core, Wirewound Inductor 530 mA 675Ohm Max Nonstandard
F1A1-383815-270M
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Signal Transformer |
| Series | F1A1-383815 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | - |
| Inductance | 27 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 530 mA |
| Current - Saturation (Isat) | 330mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 675Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.150" L x 0.150" W (3.80mm x 3.80mm) |
| Height - Seated (Max) | 0.059" (1.50mm) |
| Base Product Number | - |
| Product Attribute |  |
|
|
 |
| Part Number | F1A1-383815-220M | F1A1-383815-2R2N | F1A1-383815-2R2N | F1A1-383815-2R7N |
| Manufacturer | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 22.0UH 550MA 575 MOHM | FIXED IND 2.2UH 1.6A 106 MOHM | FIXED IND 2.2UH 1.6A 106 MOHM | FIXED IND 2.7UH 1.5A 118 MOHM |
| Series | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
