F1A1-383818-3R9N

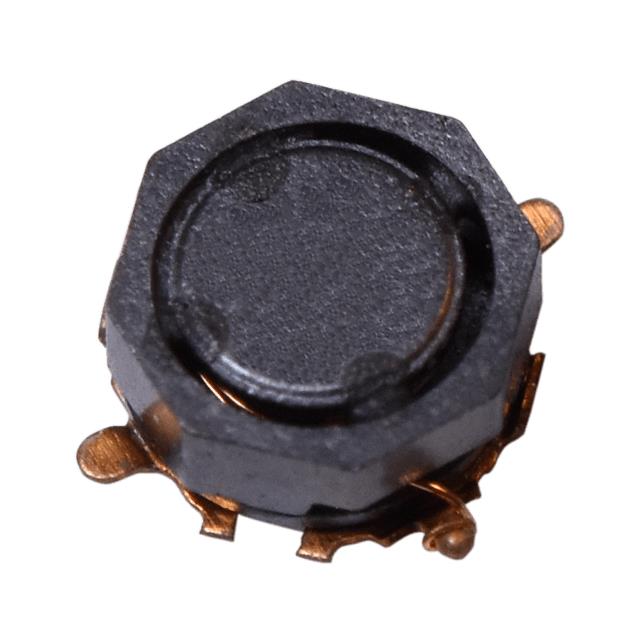

lmages are for reference only.F1A1-383818-3R9N
FIXED IND 3.9UH 1.35A 150 MOHM
DatasheetNonstandard
25,048 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3.9 µH Shielded Drum Core, Wirewound Inductor 1.35 A 150Ohm Max Nonstandard
F1A1-383818-3R9N
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Signal Transformer |
| Series | F1A1-383818 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | - |
| Inductance | 3.9 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 1.35 A |
| Current - Saturation (Isat) | 1A |
| Shielding | Shielded |
| DC Resistance (DCR) | 150Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.150" L x 0.150" W (3.80mm x 3.80mm) |
| Height - Seated (Max) | 0.071" (1.80mm) |
| Base Product Number | - |
| Product Attribute | |
|
 |
 |
| Part Number | F1A1-383818-330M | F1A1-383818-390M | F1A1-383818-3R3N | F1A1-383812-100M |
| Manufacturer | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 33.0UH 400MA 712 MOHM | FIXED IND 39.0UH 350MA 956 MOHM | FIXED IND 3.3UH 1.45A 138 MOHM | FIXED IND 10.0UH 650MA 480 MOHM |
| Series | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
