F1A2-303012-120M

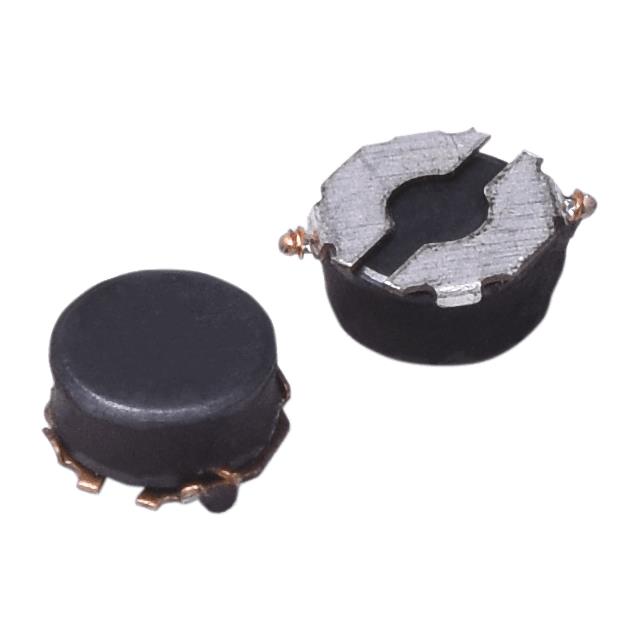

lmages are for reference only.F1A2-303012-120M
FIXED IND 12.0UH 720MA 390 MOHM
Datasheet1212 (3030 Metric)
12,792 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
12 µH Shielded Wirewound Inductor 720 mA 390mOhm Max 1212 (3030 Metric)
F1A2-303012-120M
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Signal Transformer |
| Series | F1A2-3030 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 12 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 720 mA |
| Current - Saturation (Isat) | 500mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 390mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1212 (3030 Metric) |
| Supplier Device Package | 1212 |
| Size / Dimension | 0.117" L x 0.117" W (3.00mm x 3.00mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | F1A2-303012-100M | F1A2-303012-150M | F1A2-303012-180M | F1A2-303012-1R2N |
| Manufacturer | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 10.0UH 800MA 325 MOHM | FIXED IND 15.0UH 660MA 475 MOHM | FIXED IND 18.0UH 570MA 630 MOHM | FIXED IND 1.2UH 1.70A 70 MOHM |
| Series | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
