F1B1-303015-150M
lmages are for reference only.F1B1-303015-150M
FIXED IND 15.0UH 600MA 700 MOHM
DatasheetNonstandard
93,786 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services

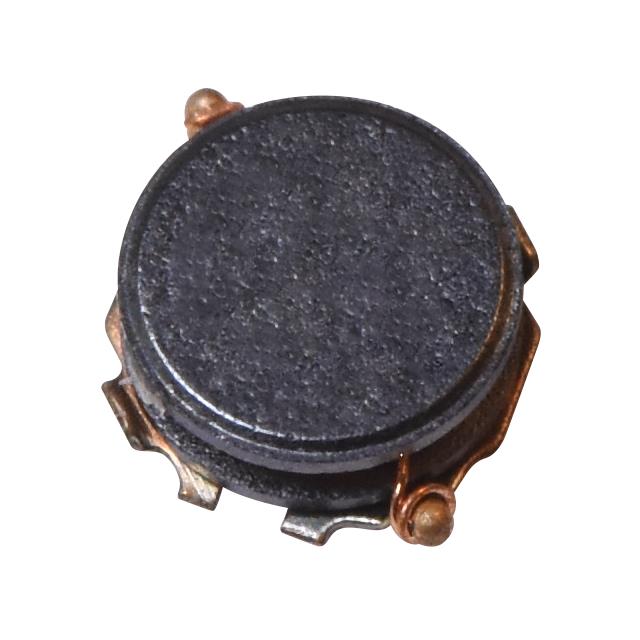

15 µH Unshielded Drum Core, Wirewound Inductor 600 mA 700Ohm Max Nonstandard
F1B1-303015-150M
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Signal Transformer |
| Series | F1B1-303015 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | - |
| Inductance | 15 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 600 mA |
| Current - Saturation (Isat) | 800mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 700Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height - Seated (Max) | 0.059" (1.50mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | F1B1-303015-100M | F1B1-303015-120M | F1B1-303015-180M | F1B1-303015-1R2M |
| Manufacturer | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 10.0UH 900MA 437 MOHM | FIXED IND 12.0UH 700MA 487 MOHM | FIXED IND 18.0UH 550MA 938 MOHM | FIXED IND 1.2UH 1.9A 88 MOHM |
| Series | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
