F1C1-201608-4R7M

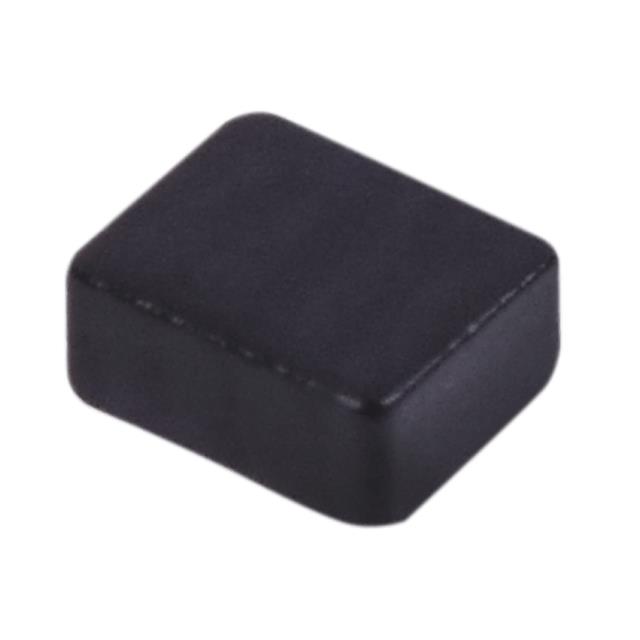

lmages are for reference only.F1C1-201608-4R7M
FIXED IND 4.7UH1.4A 290 MOHM
Datasheet0806 (2016 Metric)
37,218 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
4.7 µH Shielded Molded Inductor 1.4 A 290mOhm Max 0806 (2016 Metric)
F1C1-201608-4R7M
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Signal Transformer |
| Series | F1C1-2016 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Molded |
| Material - Core | Metal |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.4 A |
| Current - Saturation (Isat) | 1.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 290mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0806 (2016 Metric) |
| Supplier Device Package | 0806 |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.031" (0.80mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | F1C1-201608-100M | F1C1-201608-1R0M | F1C1-201608-1R5M | F1C1-201608-2R2M |
| Manufacturer | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 10.0UH 0.9A 800 MOHM | FIXED IND 1.0UH 3.3A 60 MOHM | FIXED IND 1.5UH 2.8A 85 MOHM | FIXED IND 2.2UH 2.0A 140 MOHM |
| Series | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
