Product CatalogPart Number
F23P100S05R
Manufacturer
TamuraDescription
FLUX-GATE CS VREFOUT (100A; +5
Datasheet
DatasheetPackage
Module
In Stock
84,122 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
F23P100S05R
F23P100S05R
lmages are for reference only.Payment Methods
Delivery Services
Current Sensor 100A 1 Channel Flux Gate, Closed Loop Bidirectional Module
Quick Inquiry
F23P100S05R
Specifications
| Category | Sensors, Transducers - Current Sensors - |
| Manufacturer | Tamura |
| Series | F23P |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| For Measuring | AC/DC |
| Sensor Type | Flux Gate, Closed Loop |
| Current - Sensing | 100A |
| Number of Channels | 1 |
| Output | Ratiometric, Voltage |
| Sensitivity | 6.25mV/A |
| Frequency | DC ~ 100kHz |
| Linearity | ±0.1% |
| Accuracy | ±1.2% |
| Voltage - Supply | 4.75V ~ 5.25V |
| Response Time | 500ns |
| Current - Supply (Max) | 110mA |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bidirectional |
| Mounting Type | Through Hole |
| Package / Case | Module |
| Supplier Device Package | - |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |
| Part Number | FG-R02-4BA | F26P150S05 | FG-R02-4A | F01P015S05 |
| Manufacturer | KEMET | Tamura | KEMET | Tamura |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | |

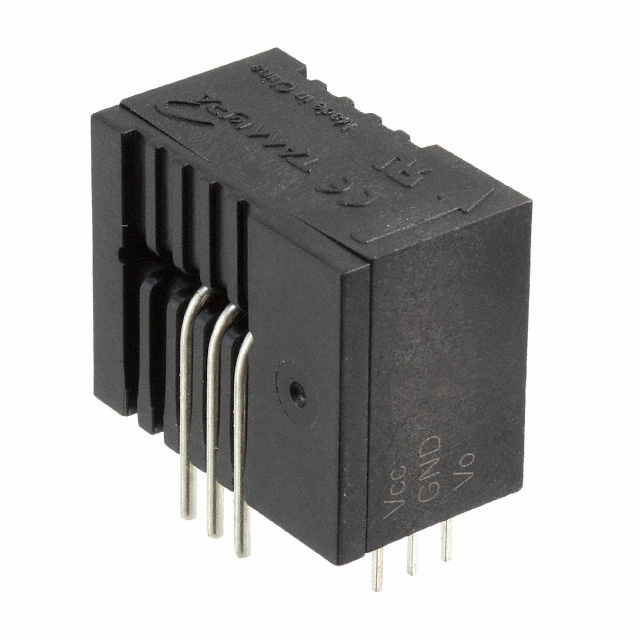

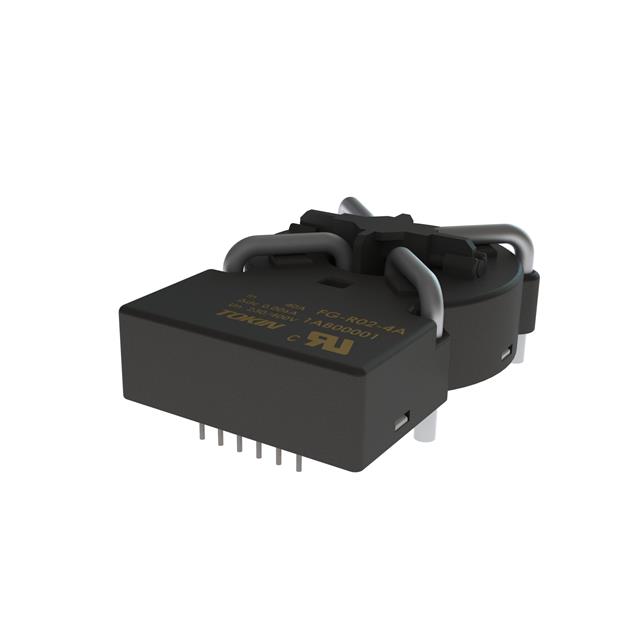

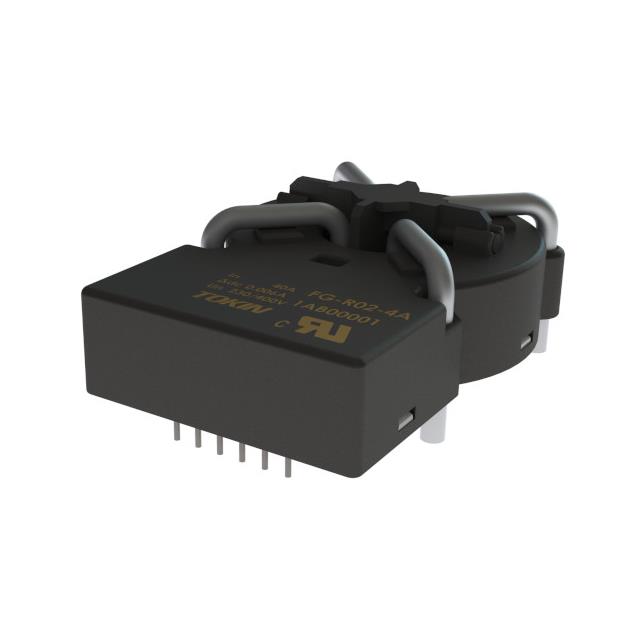

| Description | SENSOR CURRENT FLUX 40A IEC HRZ | FLUX-GATE CS VREFOUT (150A; +5V) | FLUX GATE TYPE RESIDUAL CURRENT | SENSOR CURRENT FLUX GATE 15A AC |
| Series | KEMET | Tamura | KEMET | Tamura |
| Packaging | Box | Tray | Box | Bulk |
