FB160808T-800Y-S-2

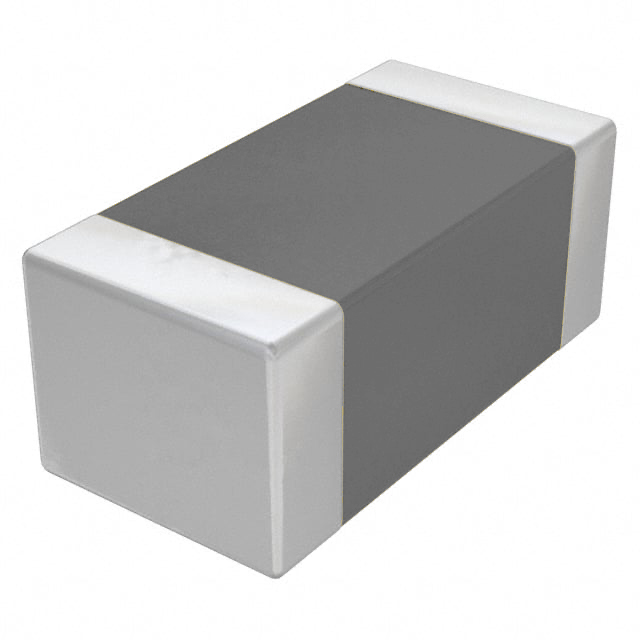

lmages are for reference only.FB160808T-800Y-S-2
FBEAD 0603 80 OHM .20DC 700MA
Datasheet0603 (1608 Metric)
30,101 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
80 Ohms @ 100 MHz 1 Signal Line Ferrite Bead 0603 (1608 Metric) 700mA 200mOhm
FB160808T-800Y-S-2
| Category | Filters - Ferrite Beads and Chips - |
| Manufacturer | Cal-Chip Electronics, Inc. |
| Series | FB |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Signal Line |
| Number of Lines | 1 |
| Impedance @ Frequency | 80 Ohms @ 100 MHz |
| Current Rating (Max) | 700mA |
| DC Resistance (DCR) (Max) | 200mOhm |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 0603 (1608 Metric) |
| Mounting Type | Surface Mount |
| Height (Max) | 0.037" (0.95mm) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Features | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | FB160808T-800Y-S | FB160808T-800Y-S-1 | FB160808T-050Y-S-1 | FB160808T-070Y-S-1 |
| Manufacturer | Cal-Chip Electronics, Inc. | Cal-Chip Electronics, Inc. | Cal-Chip Electronics, Inc. | Cal-Chip Electronics, Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FBEAD 0603 80 OHM .15DC 400MA | FBEAD 0603 80 OHM .10DC 600MA | FBEAD 0603 5 OHM .08DC 700MA | FBEAD 0603 7 OHM .10DC 900MA |
| Series | FB | FB | FB | FB |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
