FBH201209T-800Y-S
lmages are for reference only.FBH201209T-800Y-S
FB HI 0805 80 OHM 3A .04DC
Datasheet0805 (2012 Metric)
87,884 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
80 Ohms @ 100 MHz 1 Power Line Ferrite Bead 0805 (2012 Metric) 3A 40mOhm
FBH201209T-800Y-S
| Category | Filters - Ferrite Beads and Chips - |
| Manufacturer | Cal-Chip Electronics, Inc. |
| Series | FBH |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Power Line |
| Number of Lines | 1 |
| Impedance @ Frequency | 80 Ohms @ 100 MHz |
| Current Rating (Max) | 3A |
| DC Resistance (DCR) (Max) | 40mOhm |
| Ratings | - |
| Operating Temperature | - |
| Package / Case | 0805 (2012 Metric) |
| Mounting Type | Surface Mount |
| Height (Max) | 0.041" (1.05mm) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Features | - |
| Base Product Number | - |
| Product Attribute |  |
|
 |
|
| Part Number | FBH201209T-070Y-S | FBH201209T-100Y-S | FBH201209T-101Y-S | FBH201209T-102Y-S |
| Manufacturer | Cal-Chip Electronics, Inc. | Cal-Chip Electronics, Inc. | Cal-Chip Electronics, Inc. | Cal-Chip Electronics, Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

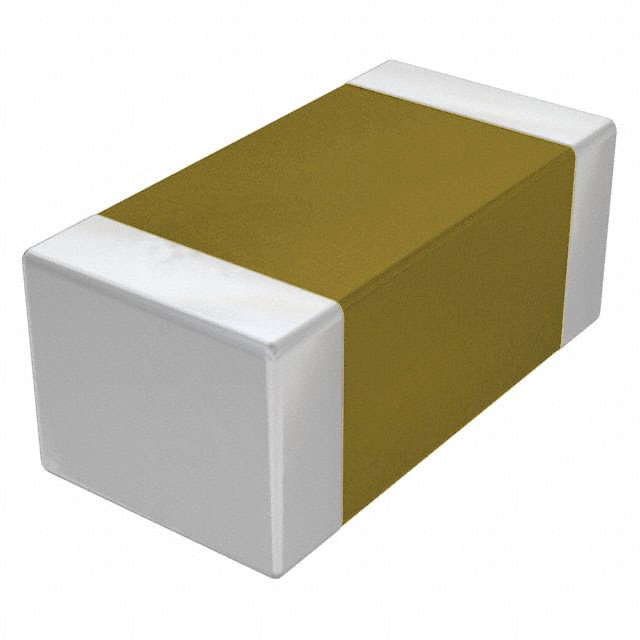

| Description | FB HI 0805 7 OHM 3A .03DC | FB HI 0805 10 OHM 3A .03DC | FB HI 0805 100 OHM 3A .04DC | FB HI 0805 1KOHM 1A .3DC |
| Series | FBH | FBH | FBH | FBH |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
