Product CatalogPart Number
FCA-125-DY8
Manufacturer
TE Connectivity Aerospace, Defense and MarineDescription
FCA-125-DY8
Datasheet
DatasheetPackage
-
In Stock
28,778 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
FCA-125-DY8
FCA-125-DY8
lmages are for reference only.Payment Methods
Delivery Services
General Purpose Relay SPDT (1 Form C) 115VAC Coil Chassis Mount
Quick Inquiry
FCA-125-DY8
Specifications
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine |
| Series | FCA-125, CII |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Mounting Type | Chassis Mount |
| Coil Voltage | 115VAC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 25 A |
| Switching Voltage | 115VAC, 28VDC - Max |
| Load - Max Switching | 2875VA, 700W |
| Coil Current | 40 mA |
| Coil Type | Non Latching |
| Features | Diode |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Hermetically |
| Coil Insulation | - |
| Must Operate Voltage | 90 VAC |
| Must Release Voltage | 5 VAC |
| Operate Time | 15 ms |
| Release Time | 50 ms |
| Operating Temperature | -70°C ~ 125°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | - |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 2.875 kOhms |
| Base Product Number | 1617748 |
Parts with Similar Specifications
| Product Attribute | |
|
|
|
| Part Number | FCA-125-DY9 | FCA-125-10 | FCA-125-11 | FCA-125-12 |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | FCA-125-DY9 | FCA-125-10=M6106/19-010 | FCA-125-11=M6106/19-011 | RELAY SPDT 25A |
| Series | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine |
| Packaging | Bulk | Bulk | Bulk | Bulk |
Customers Also Interested in
Recommended Products
FCA-125-10
TE Connectivity Aerospace, Defense and Marine
FCA-125-11
TE Connectivity Aerospace, Defense and Marine
FCA-125-12
TE Connectivity Aerospace, Defense and Marine
FCA-125-13
TE Connectivity Aerospace, Defense and Marine
FCA-125-14
TE Connectivity Aerospace, Defense and Marine
FCA-125-15
TE Connectivity Aerospace, Defense and Marine

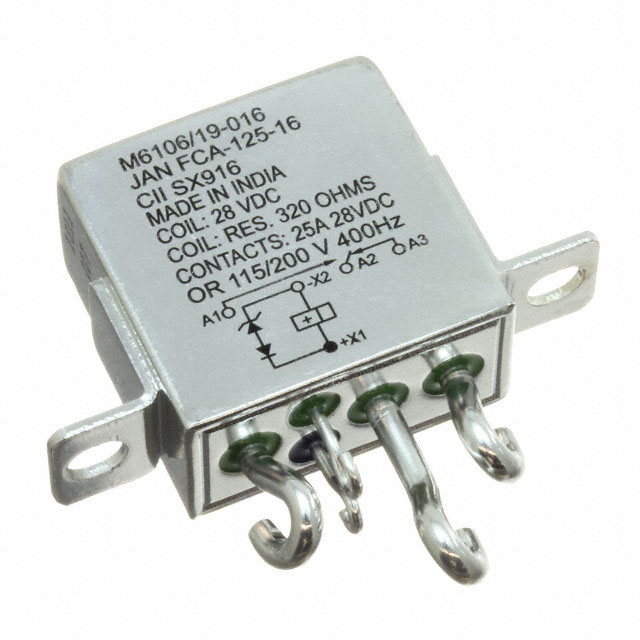

FCA-125-16
TE Connectivity Aerospace, Defense and Marine
FCA-125-17
TE Connectivity Aerospace, Defense and Marine
FCA-125-18
TE Connectivity Aerospace, Defense and Marine

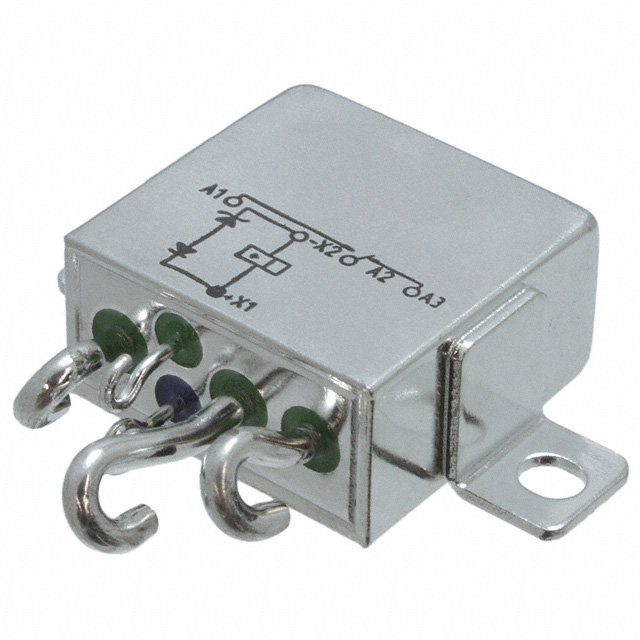

FCA-125-19
TE Connectivity Aerospace, Defense and Marine
FCA-125-20
TE Connectivity Aerospace, Defense and Marine
FCA-125-21
TE Connectivity Aerospace, Defense and Marine

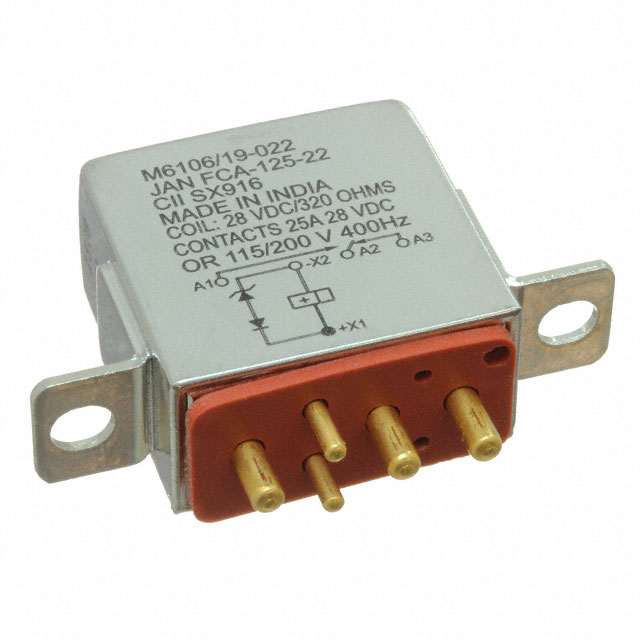

FCA-125-22
TE Connectivity Aerospace, Defense and Marine
FCA-125-23
TE Connectivity Aerospace, Defense and Marine

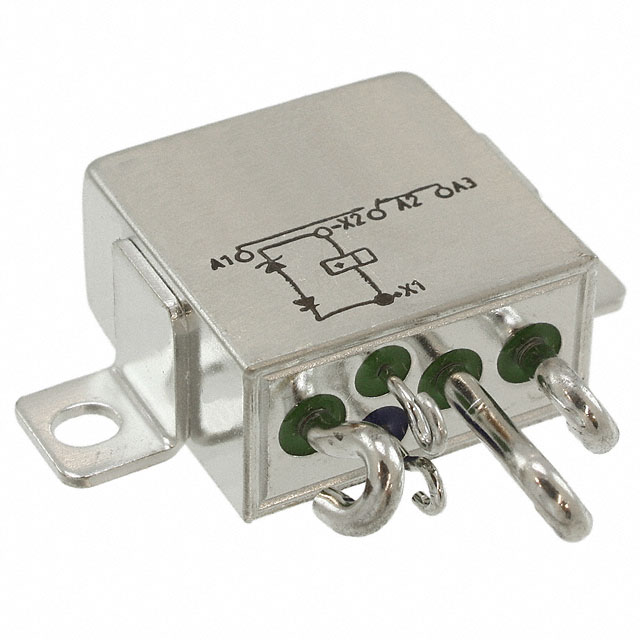

FCA-125-24
TE Connectivity Aerospace, Defense and Marine
FCA-125-25
TE Connectivity Aerospace, Defense and Marine

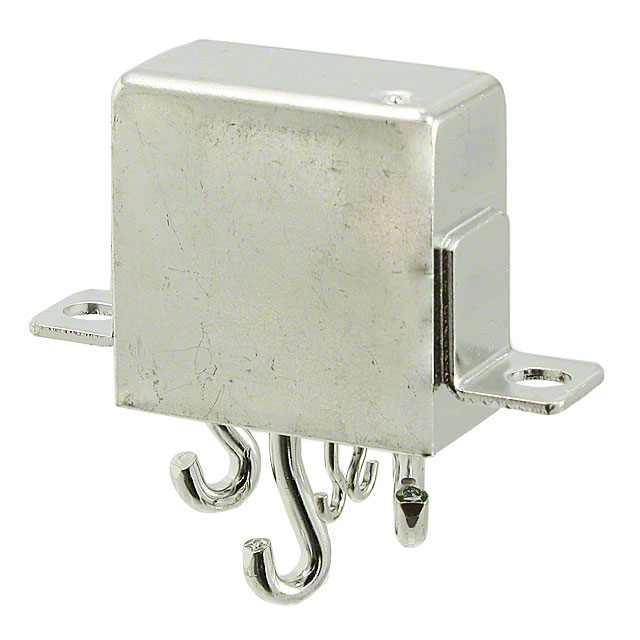

FCA-125-3
