FCA-325-AY3

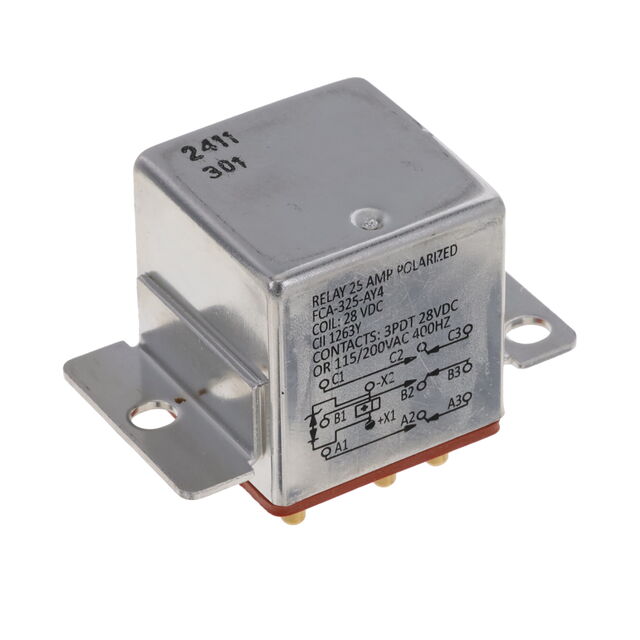

lmages are for reference only.FCA-325-AY3
RELAY GEN PURPOSE 3PDT 25A 28V
Datasheet-
47,923 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay 3PDT (3 Form C) 28VDC Coil Chassis Mount
FCA-325-AY3
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine |
| Series | FCA-325, CII |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Chassis Mount |
| Coil Voltage | 28VDC |
| Contact Form | 3PDT (3 Form C) |
| Contact Rating (Current) | 25 A |
| Switching Voltage | 115VAC, 28VDC - Max |
| Load - Max Switching | 2875VA, 700W |
| Coil Current | 96.6 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Hermetically |
| Coil Insulation | - |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 1.5 VDC |
| Operate Time | 15 ms |
| Release Time | 15 ms |
| Operating Temperature | -70°C ~ 125°C |
| Contact Material | Silver Cadmium Oxide (AgCdO), Gold (Au) |
| Approval Agency | - |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 290 Ohms |
| Base Product Number | 1617753 |
| Product Attribute | |
 |
|
|
| Part Number | FCA-325-AY2 | FCA-325-AY4 | FCA-325-AY8 | FCA-325-3201L |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | RELAY GEN PURPOSE 3PDT 25A 12V | RELAY GEN PURPOSE 3PDT 25A 28V | RELAY GEN PURPOSE 3PDT 25A 115V | RELAY GEN PURPOSE 3PDT 25A 28V |
| Series | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine |
| Packaging | Bulk | Bulk | Bulk | Bulk |
