FCBA1-0402F-8N7J

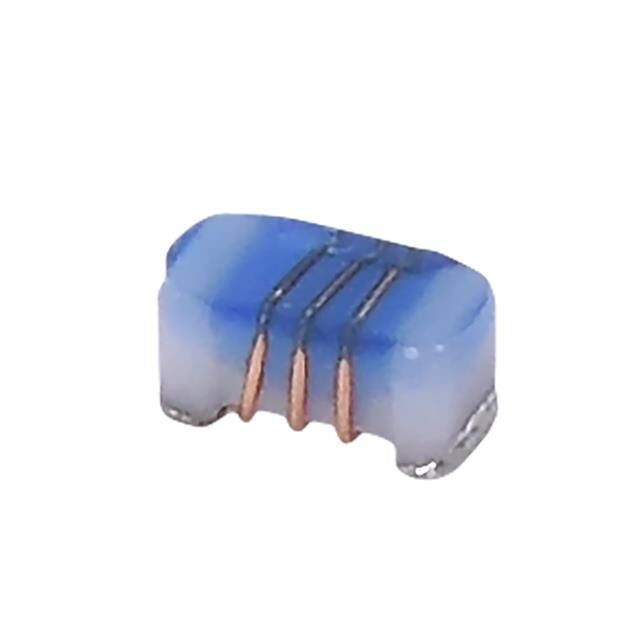

lmages are for reference only.FCBA1-0402F-8N7J
FIXED IND 8.7NH 480MA 0.2 MOHM
Datasheet0402 (1005 Metric)
67,504 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
8.7 nH Unshielded Wirewound Inductor 480 mA 200mOhm Max 0402 (1005 Metric)
FCBA1-0402F-8N7J
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Signal Transformer |
| Series | FCBA1-0402 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 8.7 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 480 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 200mOhm Max |
| Q @ Freq | 25 @ 250MHz |
| Frequency - Self Resonant | 4.1GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 |
| Size / Dimension | 0.047" L x 0.028" W (1.19mm x 0.70mm) |
| Height - Seated (Max) | 0.026" (0.66mm) |
| Base Product Number | - |
| Product Attribute | |
 |
 |
 |
| Part Number | FCBA1-0402F-82NJ | FCBA1-0402F-8N2J | FCBA1-0402F-10NJ | FCBA1-0402F-11NJ |
| Manufacturer | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 82NH 50MA 1.7 MOHM | FIXED IND 8.2NH 630MA 0.1 MOHM | FIXED IND 10NH 480MA 0.2 MOHM | FIXED IND 11NH 640MA 0.12 MOHM |
| Series | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
