FCBA1-0603F-4N7J

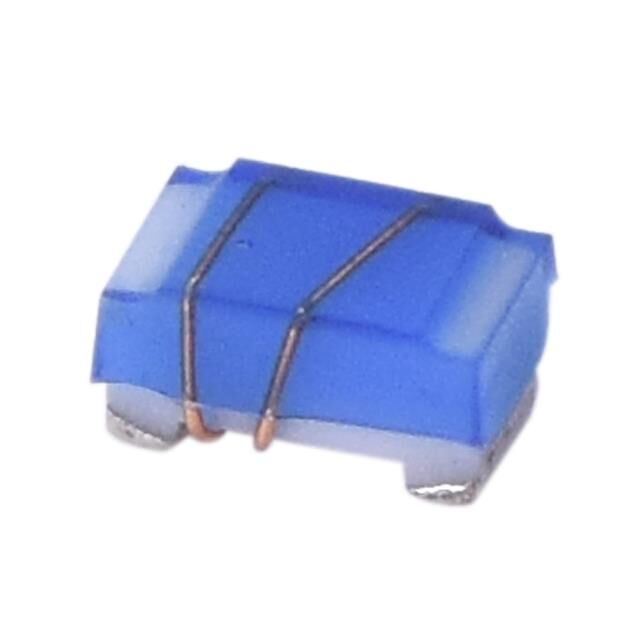

lmages are for reference only.FCBA1-0603F-4N7J
FIXED IND 4.7NH 700MA 0.116 MOHM
Datasheet0603 (1608 Metric)
95,146 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
4.7 nH Unshielded Wirewound Inductor 700 mA 116mOhm Max 0603 (1608 Metric)
FCBA1-0603F-4N7J
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Signal Transformer |
| Series | FCBA1-0603 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 4.7 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 700 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 116mOhm Max |
| Q @ Freq | 20 @ 250MHz |
| Frequency - Self Resonant | 5.8GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Size / Dimension | 0.071" L x 0.044" W (1.80mm x 1.12mm) |
| Height - Seated (Max) | 0.040" (1.02mm) |
| Base Product Number | - |
| Product Attribute |  |
|
|
 |
| Part Number | FCBA1-0603F-47NJ | FCBA1-0603F-47NJ | FCBA1-0603F-47NJ | FCBA1-0603F-10NJ |
| Manufacturer | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 47NH 600MA 0.28 MOHM | FIXED IND 47NH 600MA 0.28 MOHM | FIXED IND 47NH 600MA 0.28 MOHM | FIXED IND 10NH 700MA 0.13 MOHM |
| Series | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
