FCBA1-0603F-R39J

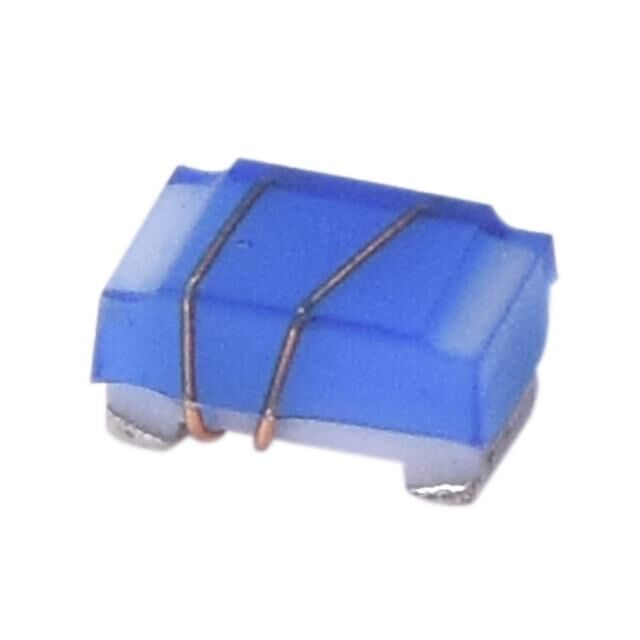

lmages are for reference only.FCBA1-0603F-R39J
FIXED IND 390NH 100MA 4.35 MOHM
Datasheet0603 (1608 Metric)
79,158 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
390 nH Unshielded Wirewound Inductor 100 mA 4.35Ohm Max 0603 (1608 Metric)
FCBA1-0603F-R39J
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Signal Transformer |
| Series | FCBA1-0603 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 390 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 100 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 4.35Ohm Max |
| Q @ Freq | 25 @ 100MHz |
| Frequency - Self Resonant | 800MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Size / Dimension | 0.071" L x 0.044" W (1.80mm x 1.12mm) |
| Height - Seated (Max) | 0.040" (1.02mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | FCBA1-0603F-R10J | FCBA1-0603F-R12J | FCBA1-0603F-R15J | FCBA1-0603F-R16J |
| Manufacturer | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 100NH 400MA 0.63 MOHM | FIXED IND 120NH 300MA 0.73 MOHM | FIXED IND 150NH 280MA 0.8 MOHM | FIXED IND 160NH 250MA 1.25 MOHM |
| Series | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
