FCBA1-0805F-10NJ

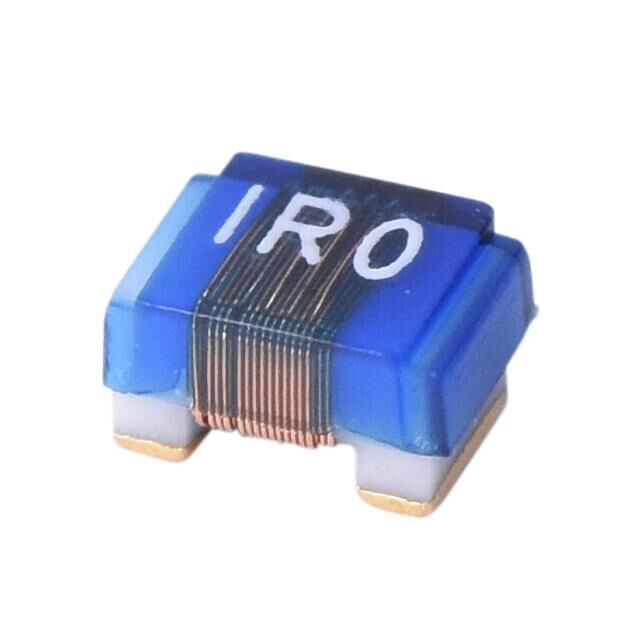

lmages are for reference only.FCBA1-0805F-10NJ
FIXED IND 10NH 600MA 0.15 MOHM
Datasheet0805 (2012 Metric)
99,142 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 nH Unshielded Wirewound Inductor 600 mA 150mOhm Max 0805 (2012 Metric)
FCBA1-0805F-10NJ
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Signal Transformer |
| Series | FCBA1-0805 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 10 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 600 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 150mOhm Max |
| Q @ Freq | 50 @ 500MHz |
| Frequency - Self Resonant | 4.2GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Size / Dimension | 0.091" L x 0.068" W (2.30mm x 1.73mm) |
| Height - Seated (Max) | 0.060" (1.52mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | FCBA1-0805F-12NJ | FCBA1-0805F-15NJ | FCBA1-0805F-18NJ | FCBA1-0805F-1R0J |
| Manufacturer | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 12NH 600MA 0.15 MOHM | FIXED IND 15NH 600MA 0.17 MOHM | FIXED IND 18NH 600MA 0.2 MOHM | FIXED IND 1000NH 170MA 2.4 MOHM |
| Series | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
