FCBA1-0805F-R12J

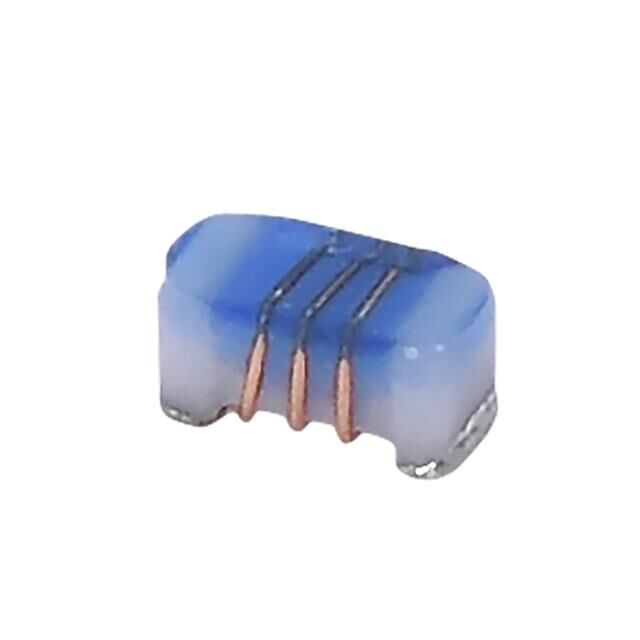

lmages are for reference only.FCBA1-0805F-R12J
FIXED IND 120NH 400MA 0.51 MOHM
Datasheet0805 (2012 Metric)
13,731 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
120 nH Unshielded Wirewound Inductor 400 mA 510mOhm Max 0805 (2012 Metric)
FCBA1-0805F-R12J
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Signal Transformer |
| Series | FCBA1-0805 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 120 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 400 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 510mOhm Max |
| Q @ Freq | 45 @ 250MHz |
| Frequency - Self Resonant | 1.1GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 150 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Size / Dimension | 0.091" L x 0.068" W (2.30mm x 1.73mm) |
| Height - Seated (Max) | 0.060" (1.52mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
|

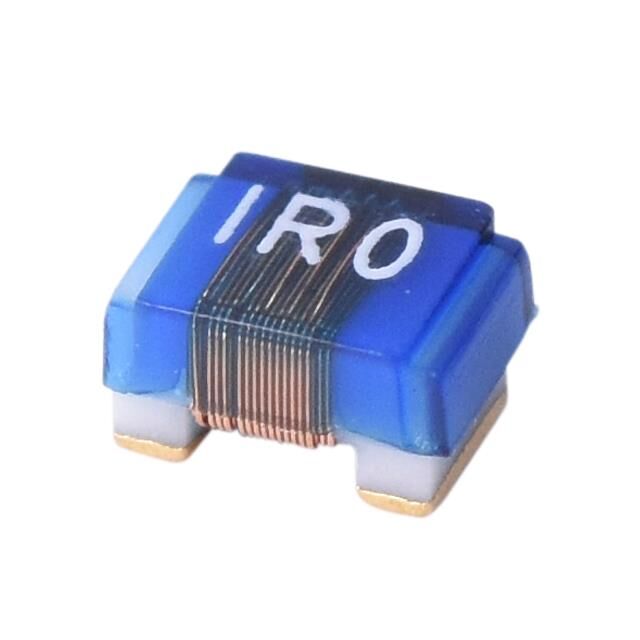

| Part Number | FCBA1-0805F-R10J | FCBA1-0805F-R15J | FCBA1-0805F-R18J | FCBA1-0805F-R18J |
| Manufacturer | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 100NH 400MA 0.46 MOHM | FIXED IND 150NH 400MA 0.56 MOHM | FIXED IND 150NH 400MA 0.64 MOHM | FIXED IND 150NH 400MA 0.64 MOHM |
| Series | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
