FCPF260N60E

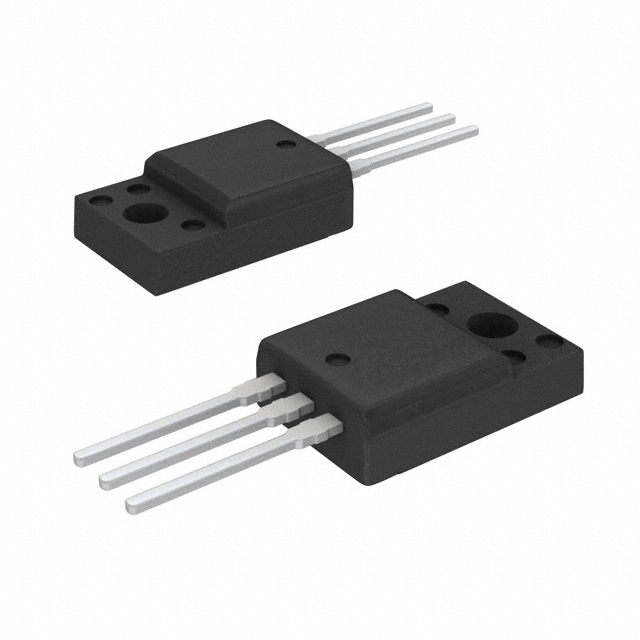

lmages are for reference only.FCPF260N60E
POWER FIELD-EFFECT TRANSISTOR, N
DatasheetTO-220-3 Full Pack
79,262 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 600 V 15A (Tc) 36W (Tc) Through Hole TO-220F-3
FCPF260N60E
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Fairchild Semiconductor |
| Series | SuperFET® II |
| Packaging | Bulk |
| RoHS Status | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 15A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 260mOhm @ 7.5A, 10V |
| Vgs(th) (Max) @ Id | 3.5V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2500 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 36W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220F-3 |
| Package / Case | TO-220-3 Full Pack |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 62 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |
| Part Number | FCPF260N60E | FCPF260N60E-F152 | FCPF260N60E-F154 | FCPF260N65FL1 |
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N CH 600V 15A TO-220F | MOSFET N-CH 600V 15A TO220F | MOSFET N-CH 600V 15A TO220F-3 | MOSFET N-CH 650V 15A TO220F |
| Series | SuperFET® II | SuperFET® II | SuperFET® II | FRFET®, SuperFET® II |
| Packaging | Tube | Tube | Tube | Tube |
