FCSL76R020FER
lmages are for reference only.Payment Methods
Delivery Services
20 mOhms ±1% 3W Chip Resistor Wide 3015 (7638 Metric), 1530 Current Sense Metal Foil
FCSL76R020FER
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Ohmite |
| Series | FCSL |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Resistance | 20 mOhms |
| Tolerance | ±1% |
| Power (Watts) | 3W |
| Composition | Metal Foil |
| Features | Current Sense |
| Temperature Coefficient | ±50ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | Wide 3015 (7638 Metric), 1530 |
| Supplier Device Package | 1530 |
| Ratings | - |
| Size / Dimension | 0.150" L x 0.299" W (3.80mm x 7.60mm) |
| Height - Seated (Max) | 0.028" (0.70mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
|
|
 |

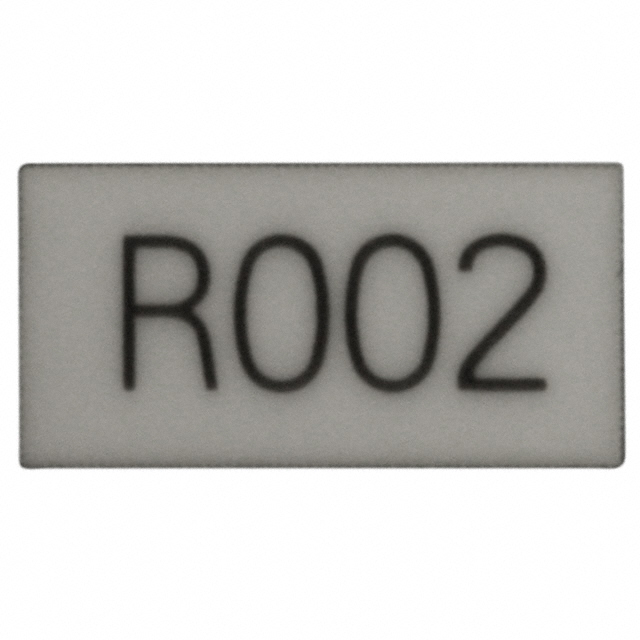

| Part Number | FCSL76R020DER | FCSL76R020FER | FCSL76R001JER | FCSL76R002GER |
| Manufacturer | Ohmite | Ohmite | Ohmite | Ohmite |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES 0.02 OHM 0.5% 3W 3015 | RES 0.02 OHM 3W 3015 WIDE | RES 0.001 OHM 3W 3015 WIDE | RES 0.002 OHM 3W 3015 WIDE |
| Series | Ohmite | Ohmite | ||
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
