Product CatalogPart Number
FDMC86012
Manufacturer
onsemiDescription
MOSFET N-CH 30V 23A POWER33
Datasheet
DatasheetPackage
8-PowerWDFN
In Stock
66,709 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
FDMC86012
FDMC86012
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 30 V 23A (Ta) 2.3W (Ta), 54W (Tc) Surface Mount Power33
Quick Inquiry
FDMC86012
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | onsemi |
| Series | PowerTrench® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 23A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 2.7mOhm @ 23A, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 5075 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.3W (Ta), 54W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | Power33 |
| Package / Case | 8-PowerWDFN |
| Base Product Number | FDMC86 |
| Gate Charge (Qg) (Max) @ Vgs | 38 nC @ 4.5 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

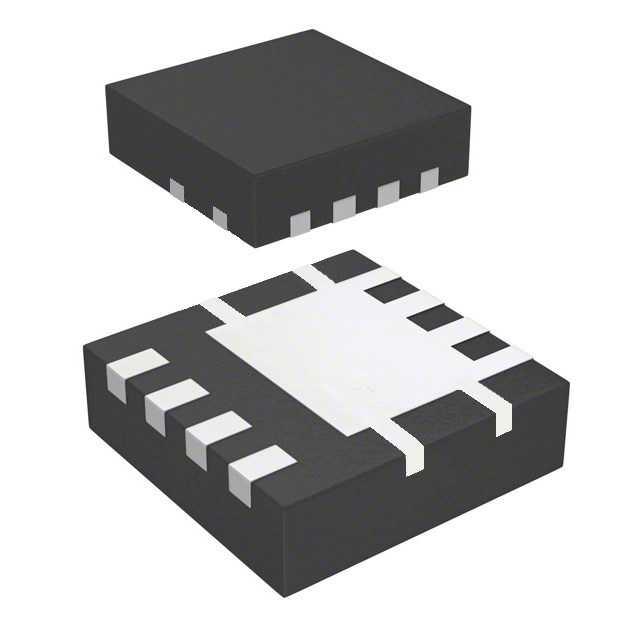

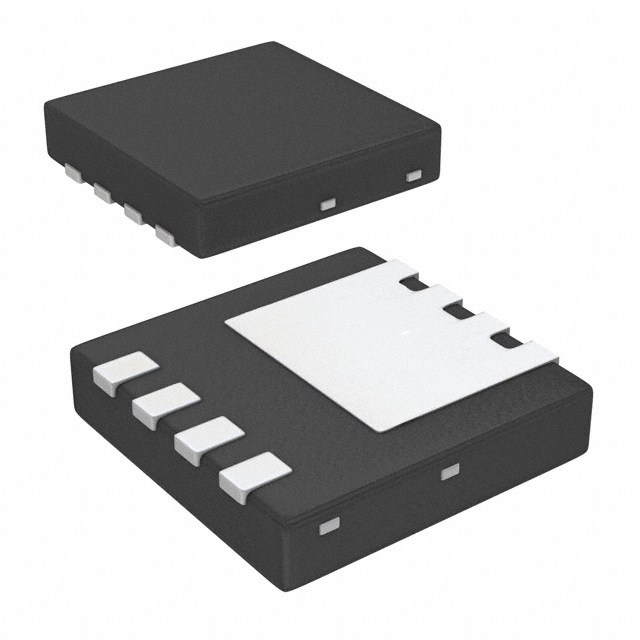

| Part Number | FDMC86102 | FDMC86102L | FDMC86102LZ | FDMC86106LZ-L701 |
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 100V 7A/20A POWER33 | MOSFET N-CH 100V 7A/18A 8MLP | MOSFET N-CH 100V 7A/18A 8MLP | FET 100V 103.0 MOHM MLP33 |
| Series | PowerTrench® | PowerTrench® | PowerTrench® | PowerTrench® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
