FDMF6707V

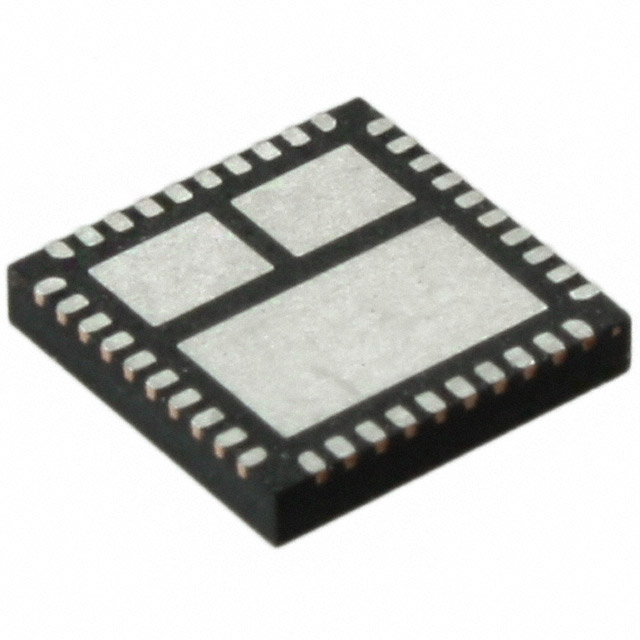

lmages are for reference only.FDMF6707V
IC HALF BRIDGE DRIVER 45A 40PQFN
Datasheet40-PowerTFQFN
16,659 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Half Bridge Driver Synchronous Buck Converters DrMOS 40-PQFN (6x6)
FDMF6707V
| Category | Integrated Circuits (ICs) - Power Management PMIC - Full Half-Bridge H Bridge Drivers |
| Manufacturer | Fairchild Semiconductor |
| Series | XS™ DrMOS |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Half Bridge |
| Applications | Synchronous Buck Converters |
| Interface | PWM |
| Load Type | Inductive |
| Technology | DrMOS |
| Rds On (Typ) | 1Ohm LS, 1Ohm HS |
| Current - Output / Channel | 45A |
| Current - Peak Output | - |
| Voltage - Supply | 8V ~ 15V |
| Voltage - Load | 3V ~ 15V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit, Status Flag |
| Fault Protection | Over Temperature, Shoot-Through, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 40-PowerTFQFN |
| Supplier Device Package | 40-PQFN (6x6) |
| Base Product Number | FDMF6707 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
|
| Part Number | FDMF6707B | FDMF6707B | FDMF6707B | FDMF6707B |
| Manufacturer | onsemi | Fairchild Semiconductor | onsemi | Fairchild Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | IC HALF BRIDGE DRIVER 50A 40PQFN | IC HALF BRIDGE DRIVER 50A 40PQFN | IC HALF BRIDGE DRIVER 50A 40PQFN | IC HALF BRIDGE DRIVER 50A 40PQFN |
| Series | XS™ DrMOS | XS™ DrMOS | XS™ DrMOS | XS™ DrMOS |
| Packaging | Tape & Reel (TR) | Bulk | Tape & Reel (TR) | Bulk |
