FDP020N06B-F102
Manufacturer
onsemiDescription
MOSFET N-CH 60V 120A TO220-3
Datasheet
DatasheetPackage
TO-220-3
In Stock
74,063 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
FDP020N06B-F102
FDP020N06B-F102

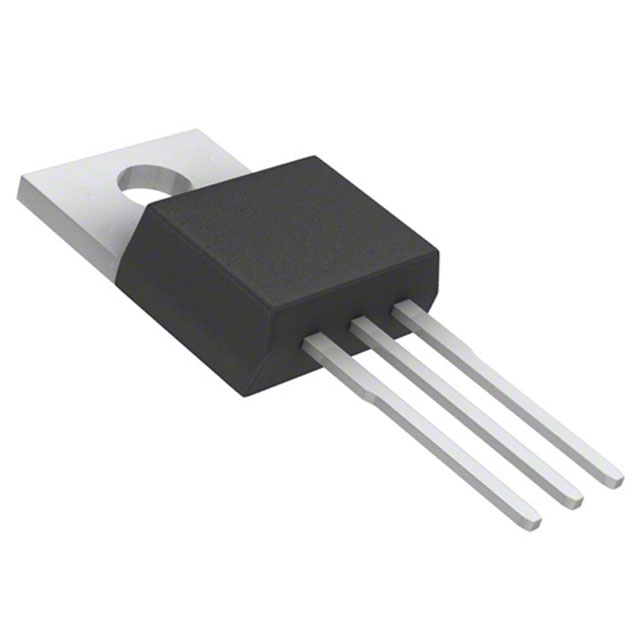

lmages are for reference only.Payment Methods
Delivery Services
N-Channel 60 V 120A (Tc) 333W (Tc) Through Hole TO-220-3
Quick Inquiry
FDP020N06B-F102
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | onsemi |
| Series | PowerTrench® |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 120A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 2mOhm @ 100A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 20930 pF @ 30 V |
| FET Feature | - |
| Power Dissipation (Max) | 333W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220-3 |
| Package / Case | TO-220-3 |
| Base Product Number | FDP020 |
| Gate Charge (Qg) (Max) @ Vgs | 268 nC @ 10 V |
| Grade | - |
| Qualification | - |
