FDPF5N50TYDTU

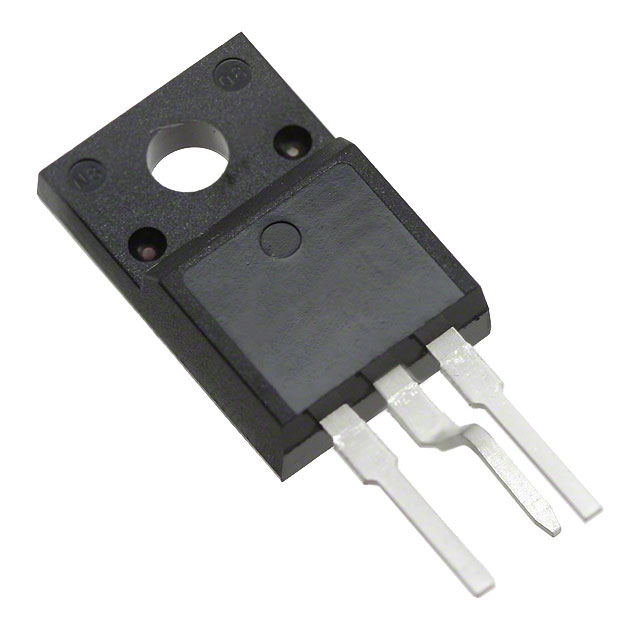

lmages are for reference only.FDPF5N50TYDTU
MOSFET N-CH 500V 5A TO220F
DatasheetTO-220-3 Full Pack, Formed Leads
17,139 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 500 V 5A (Tc) 28W (Tc) Through Hole TO-220F (LG-Formed)
FDPF5N50TYDTU
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Fairchild Semiconductor |
| Series | UniFET™ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500 V |
| Current - Continuous Drain (Id) @ 25°C | 5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 1.4Ohm @ 2.5A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 640 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 28W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220F (LG-Formed) |
| Package / Case | TO-220-3 Full Pack, Formed Leads |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 15 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | FDPF5N50FT | FDPF5N50FT | FDPF5N50NZ | FDPF5N50NZ |
| Manufacturer | onsemi | Fairchild Semiconductor | Fairchild Semiconductor | onsemi |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | MOSFET N-CH 500V 4.5A TO220F | POWER FIELD-EFFECT TRANSISTOR, 4 | POWER FIELD-EFFECT TRANSISTOR, 4 | MOSFET N-CH 500V 4.5A TO220F |
| Series | UniFET™ | UniFET™ | * | UniFET-II™ |
| Packaging | Tube | Bulk | Bulk | Tube |
