Product CatalogPart Number
FF02S40SV1-R3000
Manufacturer
JAE ElectronicsDescription
CONN FPC BOTTOM 40POS 0.3MM R/A
Datasheet
DatasheetPackage
-
In Stock
89,832 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
FF02S40SV1-R3000
FF02S40SV1-R3000

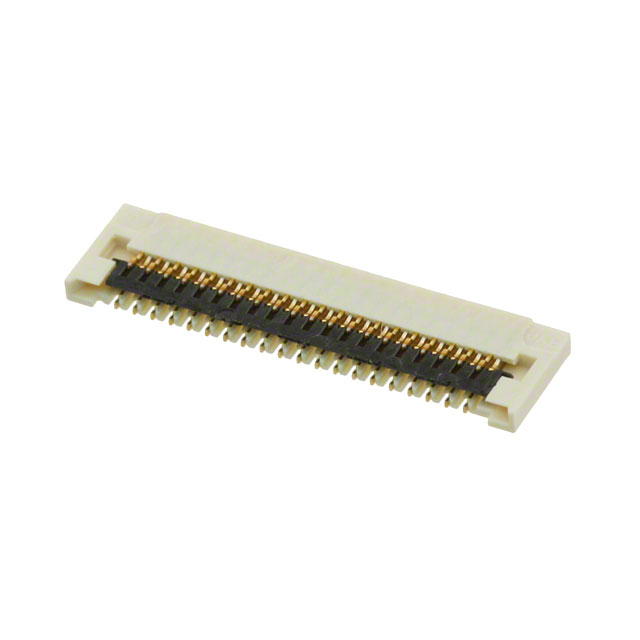

lmages are for reference only.Payment Methods
Delivery Services
40 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Quick Inquiry
FF02S40SV1-R3000
Specifications
| Category | Connectors, Interconnects - FFC-FPC Flat Flexible Connectors - FFC-FPC Flat Flexible Connector Assemblies |
| Manufacturer | JAE Electronics |
| Series | FF02S |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Flat Flex Type | FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 40 |
| Pitch | 0.012" (0.30mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.12mm |
| Height Above Board | 0.035" (0.88mm) |
| Locking Feature | Flip Lock |
| Cable End Type | Straight |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Actuator Material | Polyphenylene Sulfide (PPS) |
| Features | Zero Insertion Force (ZIF) |
| Voltage Rating | 50V |
| Operating Temperature | -40°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 0.35A per Contact |
| Contact Finish Thickness | 3.94µin (0.10µm) |
| Housing Color | White |
| Actuator Color | Black |
| Mating Cycles | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | FF02S40SV1 | FF02S45SV1 | FF02S45SV1-R3000 | FC1-15-01-T |
| Manufacturer | JAE Electronics | JAE Electronics | JAE Electronics | Samtec Inc. |
| RoHS Status | ROHS3 Compliant | |||
| Description | CONN FPC BOTTOM 40POS 0.3MM R/A | CONN FPC BOTTOM 45POS 0.3MM R/A | CONN FPC BOTTOM 45POS 0.3MM R/A | CONN FFC VERT 15POS 1MM SMD |
| Series | FF02S | FF02S | FF02S | FC1 |
| Packaging | Tray | Strip | Tape & Reel (TR) | Tube |
