FGB20N6S2

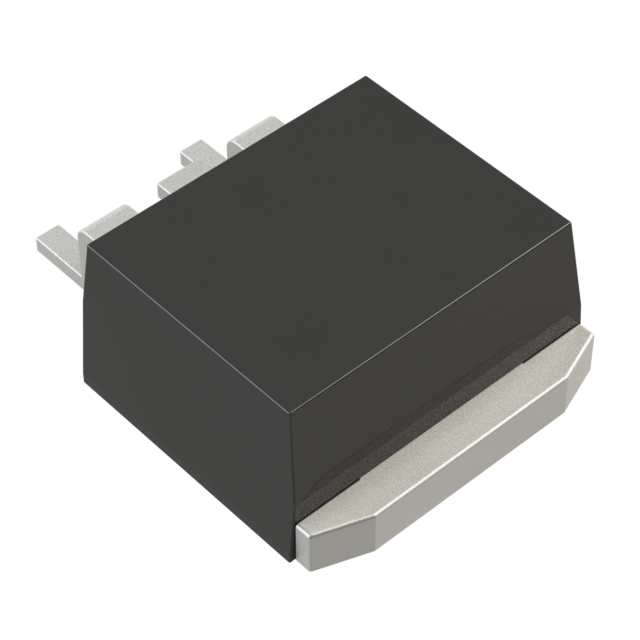

lmages are for reference only.FGB20N6S2
N-CHANNEL IGBT
DatasheetTO-263-3, D2PAK (2 Leads + Tab), TO-263AB
21,695 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
IGBT 600 V 28 A 125 W Surface Mount TO-263 (D2PAK)
FGB20N6S2
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | Fairchild Semiconductor |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 28 A |
| Current - Collector Pulsed (Icm) | 40 A |
| Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 7A |
| Power - Max | 125 W |
| Switching Energy | 25µJ (on), 58µJ (off) |
| Input Type | Standard |
| Gate Charge | 30 nC |
| Td (on/off) @ 25°C | 7.7ns/87ns |
| Test Condition | 390V, 7A, 25Ohm, 15V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263 (D2PAK) |
| Reverse Recovery Time (trr) | - |
| Base Product Number | - |
| Product Attribute |  |
|
 |
 |
| Part Number | FGB20N60SF | FGB20N60SF | FGB20N60SFD | FGB20N60SFD-F085 |
| Manufacturer | Fairchild Semiconductor | onsemi | onsemi | onsemi |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | INSULATED GATE BIPOLAR TRANSISTO | IGBT FIELD STOP 600V 40A D2PAK | IGBT 600V 40A 208W D2PAK | IGBT FIELD STOP 600V 40A TO263 |
| Series | - | - | - | - |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
