FGMS12SR6020NA

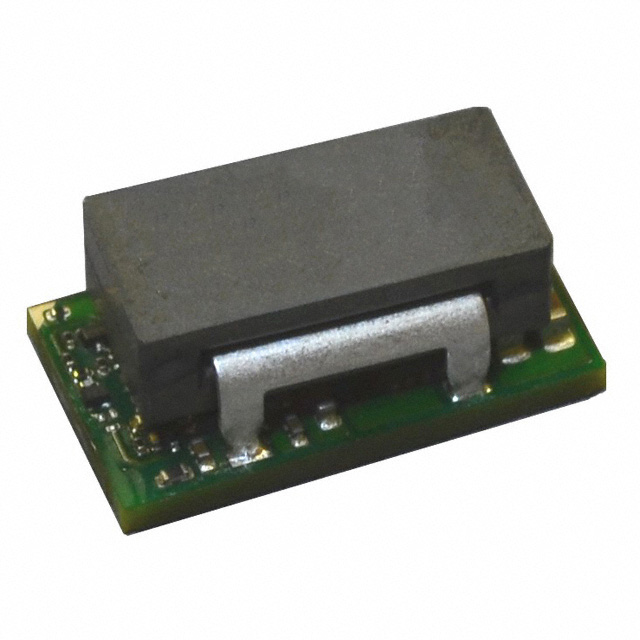

lmages are for reference only.FGMS12SR6020NA
DC DC CONVERTER 0.6-5.5V 110W
DatasheetModule
51,454 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 5.5V 20A 3V - 14.4V Input
FGMS12SR6020NA
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | FDK America, Inc., a member of Fujitsu Group |
| Series | Tomodachi (110W) |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3V |
| Voltage - Input (Max) | 14.4V |
| Voltage - Output 1 | 0.6 ~ 5.5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 20A |
| Power (Watts) | 110 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 95.2% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | Module |
| Size / Dimension | 0.80" L x 0.45" W x 0.33" H (20.3mm x 11.4mm x 8.5mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | FGMS12SR6020PA | 4AA12-P4-25PPM-M-E | PQC30-48-S15-O | 2AA24-P20 |
| Manufacturer | FDK America, Inc., a member of Fujitsu Group | ULTRAVOLT / Advanced Energy | CUI Inc. | ULTRAVOLT / Advanced Energy |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | DC DC CONVERTER | DC/DC CONVERTER | DC-DC ISOLATED, 30 W, 36~75 VDC | AA-SERIES DC TO HVDC CONVERTER, |
| Series | FDK America, Inc., a member of Fujitsu Group | ULTRAVOLT / Advanced Energy | CUI Inc. | ULTRAVOLT / Advanced Energy |
| Packaging | Bulk | Bulk | Tray | Bulk |
