IGBT Trench Field Stop 650 V 30 W Through Hole TO-220F-3

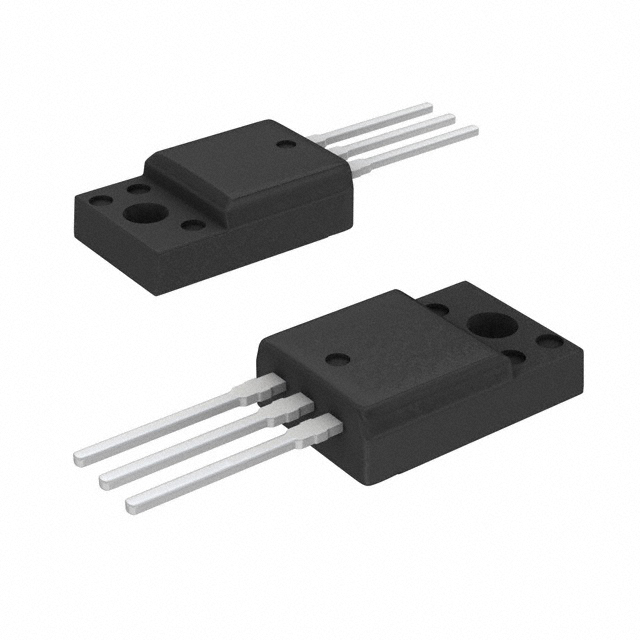

FGPF4565
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | Fairchild Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector (Ic) (Max) | - |
| Current - Collector Pulsed (Icm) | 170 A |
| Vce(on) (Max) @ Vge, Ic | 1.88V @ 15V, 30A |
| Power - Max | 30 W |
| Switching Energy | - |
| Input Type | Standard |
| Gate Charge | 40.3 nC |
| Td (on/off) @ 25°C | 11.2ns/40.8ns |
| Test Condition | 400V, 30A, 5Ohm, 15V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 Full Pack |
| Supplier Device Package | TO-220F-3 |
| Reverse Recovery Time (trr) | - |
| Base Product Number | - |
| Product Attribute |  |
 |
|
 |
| Part Number | FGPF4565 | FGPF4533 | FGPF4533 | FGPF4536 |
| Manufacturer | onsemi | Fairchild Semiconductor | onsemi | Fairchild Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | IGBT TRENCH/FS 650V TO220F | IGBT | IGBT 330V 28.4W TO220-3FP | INSULATED GATE BIPOLAR TRANSISTO |
| Series | - | - | - | - |
| Packaging | Tube | Bulk | Tube | Bulk |
