CONN FFC FPC BOTTOM 10POS 1MM RA
Datasheet-
37,754 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 (4 Loaded) Position FFC, FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle
FH12-10(4)SA-1SH(1)(98)
| Category | Connectors, Interconnects - FFC-FPC Flat Flexible Connectors - FFC-FPC Flat Flexible Connector Assemblies |
| Manufacturer | Hirose Electric Co Ltd |
| Series | FH12 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 10 (4 Loaded) |
| Pitch | 0.039" (1.00mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.079" (2.00mm) |
| Locking Feature | Flip Lock |
| Cable End Type | Straight |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Housing Material | Polyamide (PA), Nylon |
| Actuator Material | Polyphenylene Sulfide (PPS) |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating | 50V |
| Operating Temperature | -40°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 0.5A |
| Contact Finish Thickness | - |
| Housing Color | Beige |
| Actuator Color | Brown |
| Mating Cycles | 20 |
| Base Product Number | FH12 |
| Product Attribute | |
SA-1SH(55).jpg "FH12-10(4)SA-1SH(55)") |
|
 |
| Part Number | FH12-10(4)SA-1SH | FH12-10(4)SA-1SH(55) | FH1-5S-2.54DSA | FH10A-12S-1SH |
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| RoHS Status | RoHS non-compliant | RoHS Compliant | RoHS non-compliant | RoHS non-compliant |
| Description | CONN FFC FPC BOTTOM 10POS 1MM RA | CONN FFC FPC BOTTOM 10POS 1MM RA | CONN FFC VERT 5POS 2.54MM PCB | CONN FFC FPC TOP 12POS 1MM R/A |
| Series | FH12 | FH12 | FH1 | FH10A |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tube |
Recommended Products
(98).jpg "FH12-10S-0.5SH(1)(98)")
.jpg "FH12-10S-0.5SH(54)")
.jpg "FH12-10S-0.5SH(55)")
.jpg "FH12-10S-0.5SH(60)")
(98).jpg "FH12-10S-0.5SV(1)(98)")
.jpg "FH12-10S-0.5SV(55)")
.jpg "FH12-10S-0.5SVA(54)")

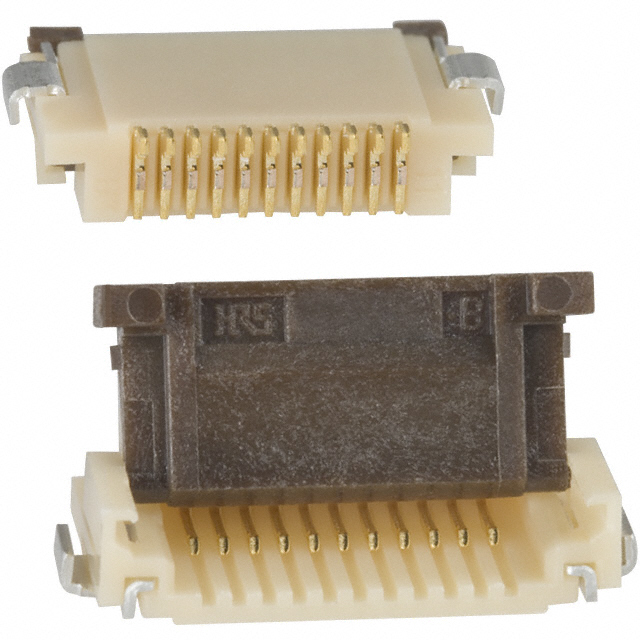

(98).jpg "FH12-11S-0.5SH(1)(98)")
