Product CatalogPart Number
FH18-51S-0.3SHW
Manufacturer
Hirose Electric Co LtdDescription
CONN FPC BOTTOM 51POS 0.3MM R/A
Datasheet
DatasheetPackage
-
In Stock
61,292 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
FH18-51S-0.3SHW
FH18-51S-0.3SHW
lmages are for reference only.Payment Methods
Delivery Services
51 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Quick Inquiry
FH18-51S-0.3SHW
Specifications
| Category | Connectors, Interconnects - FFC-FPC Flat Flexible Connectors - FFC-FPC Flat Flexible Connector Assemblies |
| Manufacturer | Hirose Electric Co Ltd |
| Series | FH18 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS non-compliant |
| Flat Flex Type | FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 51 |
| Pitch | 0.012" (0.30mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.20mm |
| Height Above Board | 0.071" (1.80mm) |
| Locking Feature | Flip Lock |
| Cable End Type | Tapered |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin-Lead |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Actuator Material | - |
| Features | Low Insertion Force (LIF), Zero Insertion Force (ZIF) |
| Voltage Rating | 30V |
| Operating Temperature | -40°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 0.15A |
| Contact Finish Thickness | - |
| Housing Color | Beige |
| Actuator Color | Black |
| Mating Cycles | 10 |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute | .jpg "FH18-51S-0.3SHW(55)") |
.jpg "FH18-17S-0.3SHW(55)") |
 |
.jpg "FH18-21S-0.3SHW(55)") |
| Part Number | FH18-51S-0.3SHW(55) | FH18-17S-0.3SHW(55) | FH18-21S-0.3SHW | FH18-21S-0.3SHW(55) |
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| RoHS Status | RoHS non-compliant | |||
| Description | CONN FPC BOTTOM 51POS 0.3MM R/A | CONN FPC BOTTOM 17POS 0.3MM R/A | CONN FPC BOTTOM 21POS 0.3MM R/A | CONN FPC BOTTOM 21POS 0.3MM R/A |
| Series | FH18 | FH18 | FH18 | FH18 |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
FH18-17S-0.3SHW(55)
Hirose Electric Co Ltd
FH18-21S-0.3SHW
Hirose Electric Co Ltd
FH18-21S-0.3SHW(55)
Hirose Electric Co Ltd
.jpg "FH18-25S-0.3SHW(55)")
FH18-25S-0.3SHW(55)
Hirose Electric Co Ltd

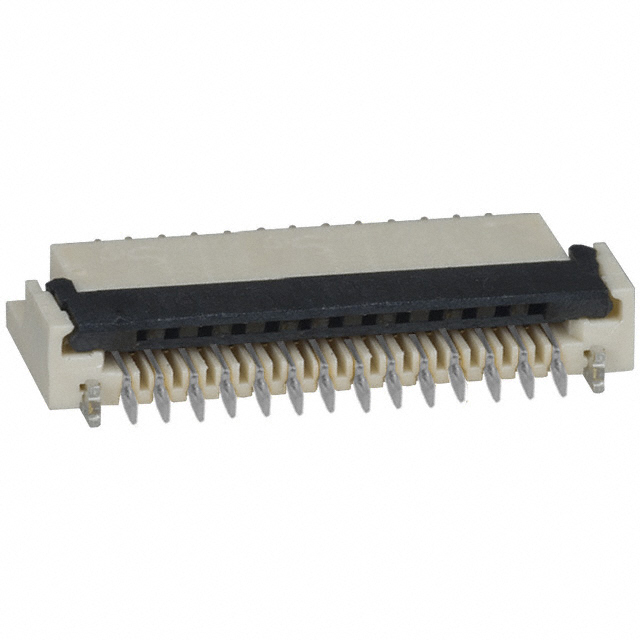

FH18-27S-0.3SHW
Hirose Electric Co Ltd
.jpg "FH18-27S-0.3SHW(55)")

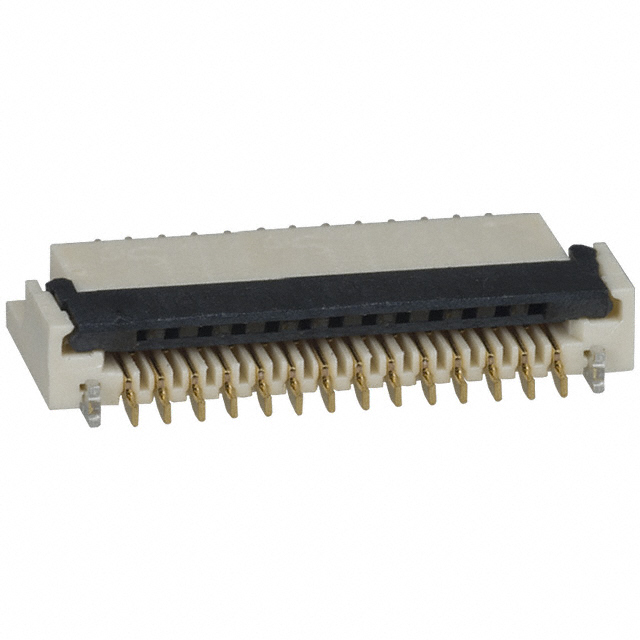

FH18-27S-0.3SHW(55)
