FH19SC-17S-0.5SH(99)
Manufacturer
Hirose Electric Co LtdDescription
CONN FFC BOTTOM 17POS 0.5MM R/A
Datasheet
DatasheetPackage
-
In Stock
91,590 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
FH19SC-17S-0.5SH(99)
.jpg "FH19SC-17S-0.5SH(99)")
FH19SC-17S-0.5SH(99)
lmages are for reference only.Payment Methods
Delivery Services

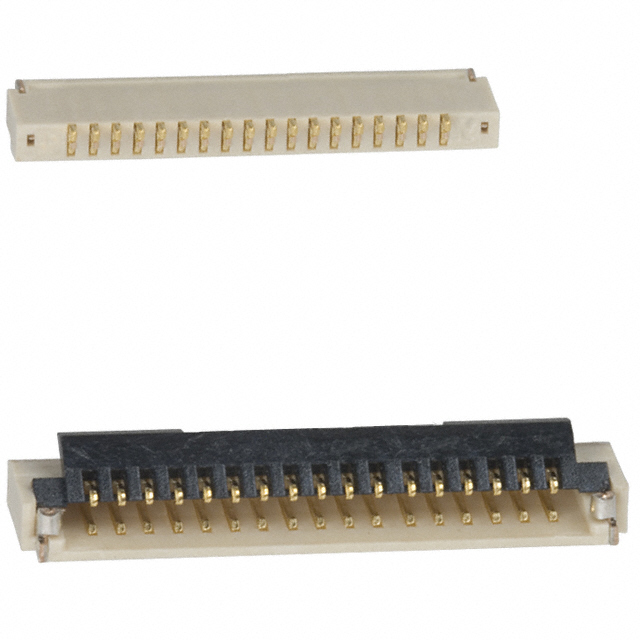

17 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Quick Inquiry
FH19SC-17S-0.5SH(99)
Specifications
| Category | Connectors, Interconnects - FFC-FPC Flat Flexible Connectors - FFC-FPC Flat Flexible Connector Assemblies |
| Manufacturer | Hirose Electric Co Ltd |
| Series | FH19SC |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 17 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.037" (0.95mm) |
| Locking Feature | Flip Lock |
| Cable End Type | Tapered |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Actuator Material | Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS) |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating | 50V |
| Operating Temperature | -55°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 0.5A |
| Contact Finish Thickness | - |
| Housing Color | Beige |
| Actuator Color | Black |
| Mating Cycles | 20 |
| Base Product Number | FH19 |
