Part Number
FH21-10S-1DS
Manufacturer
Hirose Electric Co LtdDescription
CONN FFC FPC 10POS 1MM R/A
Datasheet
Datasheet
Package
-
In Stock
89,157 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
FH21-10S-1DS
lmages are for reference only.FH21-10S-1DS
CONN FFC FPC 10POS 1MM R/A
-
89,157 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 Position FFC, FPC Connector Contacts, Top and Bottom 0.039" (1.00mm) Through Hole, Right Angle
FH21-10S-1DS
Category | Connectors, Interconnects - FFC-FPC Flat Flexible Connectors - FFC-FPC Flat Flexible Connector Assemblies |
Manufacturer | Hirose Electric Co Ltd |
Series | FH21 |
Packaging | Bulk |
RoHS Status | RoHS non-compliant |
Flat Flex Type | FFC, FPC |
Mounting Type | Through Hole, Right Angle |
Connector/Contact Type | Contacts, Top and Bottom |
Number of Positions | 10 |
Pitch | 0.039" (1.00mm) |
Termination | Kinked Pin |
FFC, FCB Thickness | 0.30mm |
Height Above Board | 0.106" (2.70mm) |
Locking Feature | - |
Cable End Type | Straight |
Contact Material | Phosphor Bronze |
Contact Finish | Solder Plating |
Housing Material | Polybutylene Terephthalate (PBT) |
Actuator Material | - |
Features | Low Insertion Force (LIF) |
Voltage Rating | 50V |
Operating Temperature | -30°C ~ 70°C |
Material Flammability Rating | UL94 V-0 |
Current Rating (Amps) | 0.5A |
Contact Finish Thickness | - |
Housing Color | Black |
Actuator Color | - |
Mating Cycles | 10 |
Base Product Number | - |
Product Attribute | ![]() |
![]() |
![]() |
![]() |

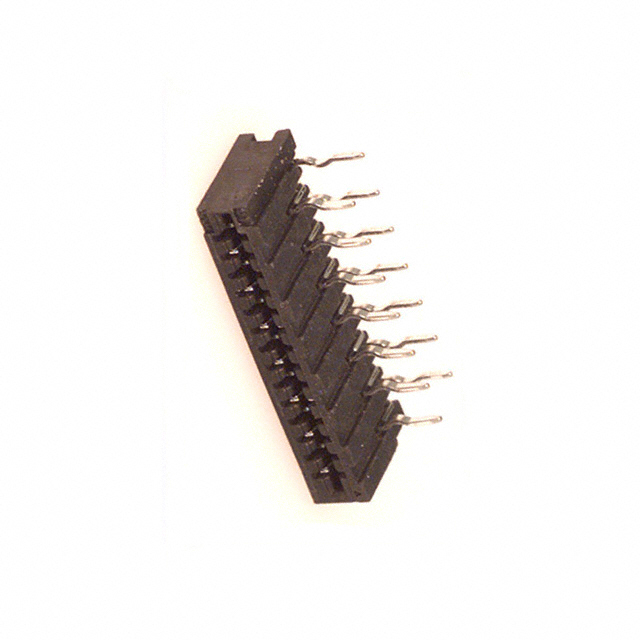

Part Number | FH21-10S-1DSA | FH21-12S-1DS | FH21-12S-1DSA | FH21-14S-1DS |
Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
Description | CONN FFC FPC VERT 10POS 1MM PCB | CONN FFC FPC 12POS 1MM R/A | CONN FFC FPC VERT 12POS 1MM PCB | CONN FFC FPC 14POS 1MM R/A |
Series | FH21 | FH21 | FH21 | FH21 |
Packaging | Bulk | Bulk | Bulk | Bulk |
