FH26-31S-0.3SHW(10)

FH26-31S-0.3SHW(10)

FH26-31S-0.3SHW(10)

lmages are for reference only.
  • Part Number

    FH26-31S-0.3SHW(10)

  • Manufacturer

    Hirose Electric Co Ltd
  • Description

    CONN FPC BOTTOM 31POS 0.3MM R/A

  • Datasheet

    DatasheetDatasheet
  • Package

    -

  • In Stock

    62,227 piece(s)

  • Unit Price

    Please Contact Us

  • Lead Time

    Can Ship Immediately

Request for Quotation

  • Payment Methods

  • Delivery Services

31 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle

Quick Inquiry

FH26-31S-0.3SHW(10)

Get the Price Now!

Specifications

Category Connectors, Interconnects - FFC-FPC Flat Flexible Connectors - FFC-FPC Flat Flexible Connector Assemblies
Manufacturer Hirose Electric Co Ltd
Series FH26
Packaging Tape & Reel (TR)
RoHS Status
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 31
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.039" (1.00mm)
Locking Feature Flip Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Polyamide (PA), Nylon
Features Zero Insertion Force (ZIF)
Voltage Rating 30V
Operating Temperature -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.2A
Contact Finish Thickness -
Housing Color Black
Actuator Color Brown
Mating Cycles 10
Base Product Number -

Parts with Similar Specifications

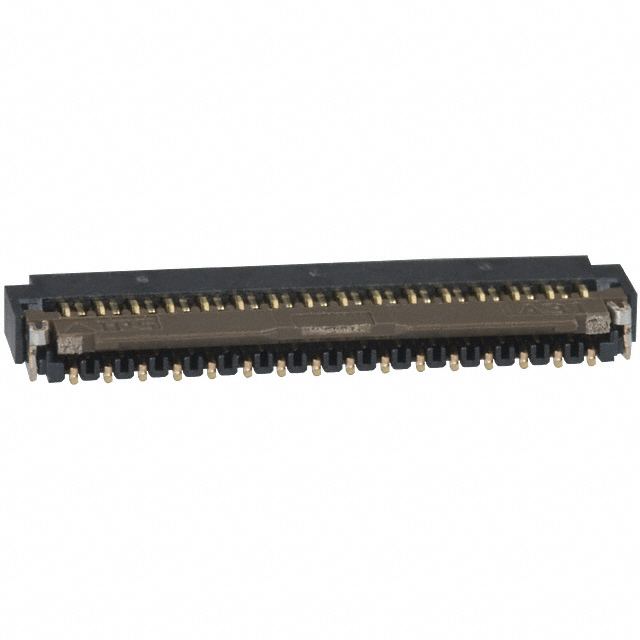

Product Attribute FH26-31S-0.3SHW(05) FH26-31S-0.3SHW(98) FH26-31S-0.3SHW(99) FH26-13S-0.3SHW(05)
Part Number FH26-31S-0.3SHW(05) FH26-31S-0.3SHW(98) FH26-31S-0.3SHW(99) FH26-13S-0.3SHW(05)
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
RoHS Status
Description CONN FPC BOTTOM 31POS 0.3MM R/A CONN FPC BOTTOM 31POS 0.3MM R/A CONN FPC BOTTOM 31POS 0.3MM R/A CONN FPC BOTTOM 13POS 0.3MM R/A
Series FH26 FH26 FH26 FH26
Packaging Tape & Reel (TR)-->Cut Tape (CT) Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)-->Cut Tape (CT)
