FH28D-50(25)SB-1SH(98)
lmages are for reference only.FH28D-50(25)SB-1SH(98)
CONN FFC FPC BOTTOM 50POS 1MM RA
Datasheet-
85,740 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
50 (25 Loaded) Position FFC, FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle
FH28D-50(25)SB-1SH(98)
| Category | Connectors, Interconnects - FFC-FPC Flat Flexible Connectors - FFC-FPC Flat Flexible Connector Assemblies |
| Manufacturer | Hirose Electric Co Ltd |
| Series | FH28 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 50 (25 Loaded) |
| Pitch | 0.039" (1.00mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.100" (2.54mm) |
| Locking Feature | Rotary Lock |
| Cable End Type | Tabbed |
| Contact Material | - |
| Contact Finish | Gold |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Actuator Material | - |
| Features | - |
| Voltage Rating | - |
| Operating Temperature | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | - |
| Contact Finish Thickness | - |
| Housing Color | - |
| Actuator Color | - |
| Mating Cycles | - |
| Base Product Number | FH28 |
| Product Attribute | |
|
.jpg "FH28D-50S-0.5SH(05)") |

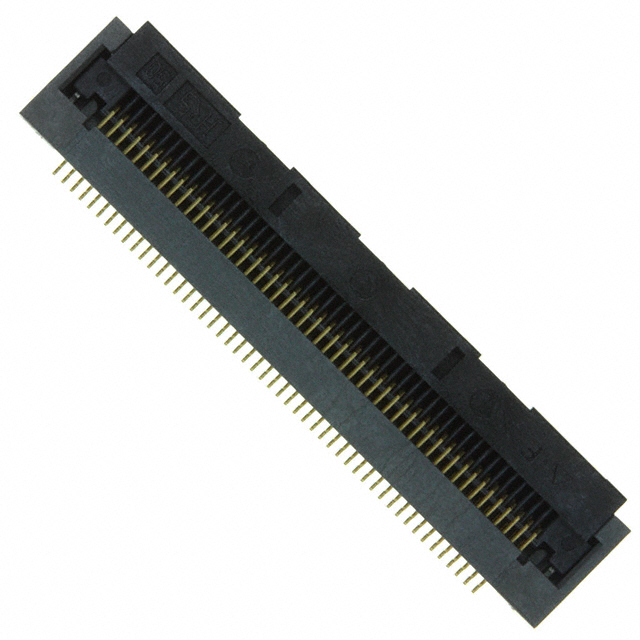

.jpg "FH28D-50S-0.5SH(98)") |
