FH36W-39S-0.3SHW(99)
Manufacturer
Hirose Electric Co LtdDescription
CONN FPC BOTTOM 39POS 0.3MM R/A
Datasheet
DatasheetPackage
-
In Stock
73,194 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
FH36W-39S-0.3SHW(99)
.jpg "FH36W-39S-0.3SHW(99)")
FH36W-39S-0.3SHW(99)
lmages are for reference only.Payment Methods
Delivery Services

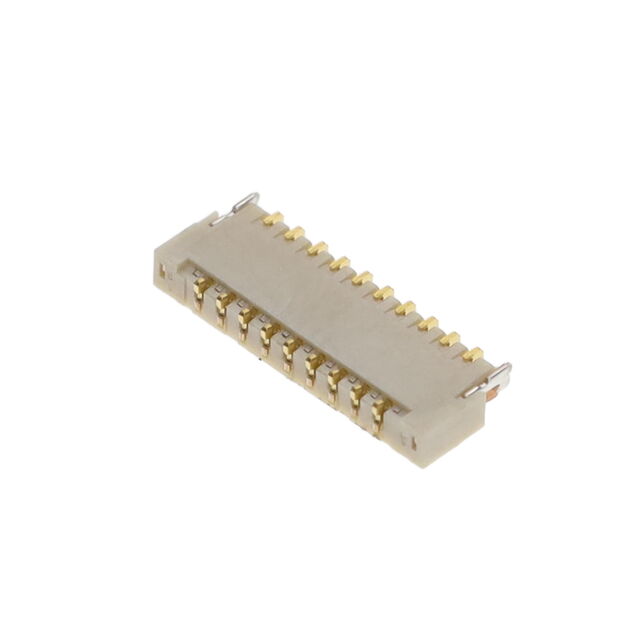

39 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Quick Inquiry
FH36W-39S-0.3SHW(99)
Specifications
| Category | Connectors, Interconnects - FFC-FPC Flat Flexible Connectors - FFC-FPC Flat Flexible Connector Assemblies |
| Manufacturer | Hirose Electric Co Ltd |
| Series | FH36 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Flat Flex Type | FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 39 |
| Pitch | 0.012" (0.30mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.20mm |
| Height Above Board | 0.039" (1.00mm) |
| Locking Feature | Flip Lock |
| Cable End Type | Tabbed |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Actuator Material | Polyamide (PA), Nylon |
| Features | Zero Insertion Force (ZIF) |
| Voltage Rating | 30V |
| Operating Temperature | -55°C ~ 85°C |
| Material Flammability Rating | UL94 HB |
| Current Rating (Amps) | 0.2A |
| Contact Finish Thickness | - |
| Housing Color | Beige |
| Actuator Color | Brown |
| Mating Cycles | 10 |
| Base Product Number | FH36 |
