Product CatalogPart Number
FH3840022Z
Manufacturer
Diodes IncorporatedDescription
CRYSTAL 38.4000MHZ 10PF SMD
Datasheet
DatasheetPackage
4-SMD, No Lead
In Stock
35,000 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
FH3840022Z
FH3840022Z
lmages are for reference only.Payment Methods
Delivery Services
38.4 MHz ±10ppm Crystal 10pF 50 Ohms 4-SMD, No Lead
Quick Inquiry
FH3840022Z
Specifications
| Category | Crystals, Oscillators, Resonators - Crystals - |
| Manufacturer | Diodes Incorporated |
| Series | SaRonix-eCera™ FH |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | MHz Crystal |
| Frequency | 38.4 MHz |
| Frequency Stability | ±15ppm |
| Frequency Tolerance | ±10ppm |
| Load Capacitance | 10pF |
| ESR (Equivalent Series Resistance) | 50 Ohms |
| Operating Mode | Fundamental |
| Operating Temperature | -30°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.028" (0.70mm) |
| Base Product Number | FH3840022 |
Parts with Similar Specifications
| Product Attribute | |
 |
|
 |
| Part Number | FH3840022Z | FH3840020Z | FH3840020Z | FH3840021Z |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CRYSTAL 38.4000MHZ 10PF SMD | CRYSTAL 38.4000MHZ 8PF SMD | CRYSTAL 38.4000MHZ 8PF SMD | CRYSTAL 38.4000MHZ 10PF SMD |
| Series | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
Customers Also Interested in
Recommended Products
FH3840020Z
Diodes Incorporated

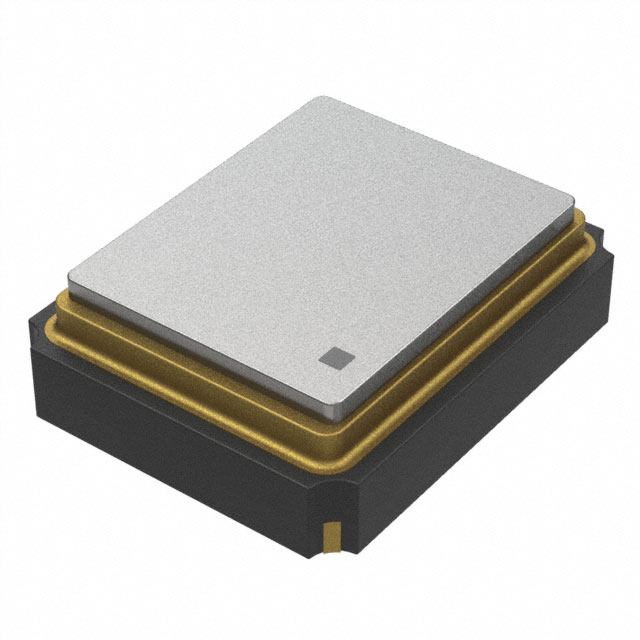

FH3840020Z
Diodes Incorporated
FH3840021Z
Diodes Incorporated
FH3840021Z
Diodes Incorporated
FH3840022Z
Diodes Incorporated

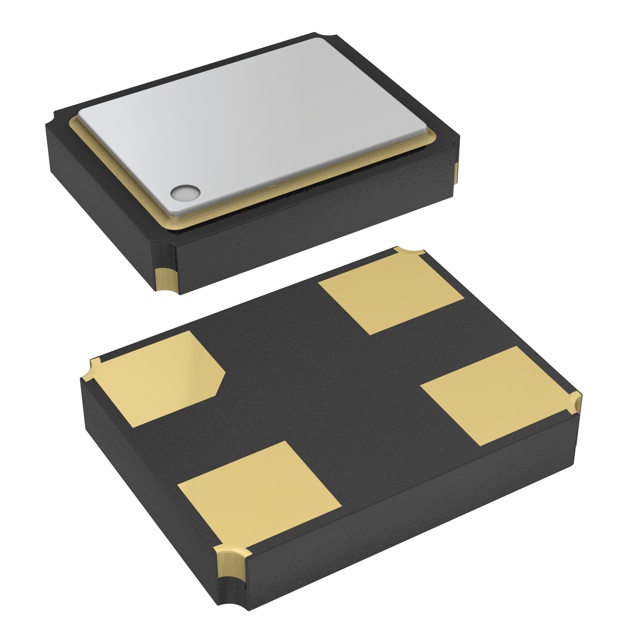

FH3840024Z
