FIRCH-5-B
lmages are for reference only.FIRCH-5-B
FIXED IND 5.9UH 5.7A 18.5MOHM TH
DatasheetRadial, Vertical Cylinder (Open)
12,965 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
5.9 µH Unshielded Drum Core, Wirewound Inductor 5.7 A 18.5mOhm Max Radial, Vertical Cylinder (Open)
FIRCH-5-B
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Triad Magnetics |
| Series | FIRCH |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 5.9 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 5.7 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 18.5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder (Open) |
| Supplier Device Package | - |
| Size / Dimension | 0.630" L x 0.465" W (16.00mm x 11.81mm) |
| Height - Seated (Max) | 1.050" (26.67mm) |
| Base Product Number | - |
| Product Attribute | |
 |
 |
|

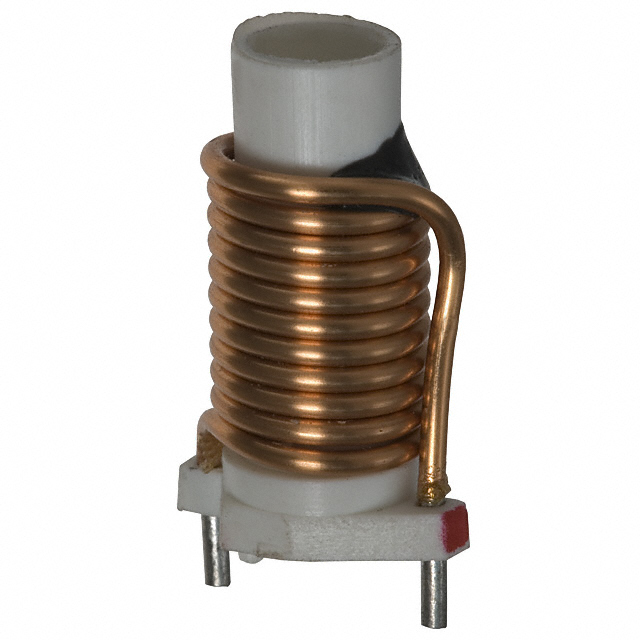

| Part Number | FIRCH-5-B | FIRCH-1 | FIRCH-1-B | FIRCH-2 |
| Manufacturer | Triad Magnetics | Triad Magnetics | Triad Magnetics | Triad Magnetics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 5.9UH 5.7A 18.5MOHM TH | FIXED IND 2.54UH 11.6A 5.5 MOHM | FIXED IND 2.54UH 11.6A 5.5 MOHM | FIXED IND 3.05UH 9.7A 7.3MOHM TH |
| Series | Triad Magnetics | Triad Magnetics | Triad Magnetics | Triad Magnetics |
| Packaging | Bulk | Bulk | Bulk | Bulk |
