FIT80-5

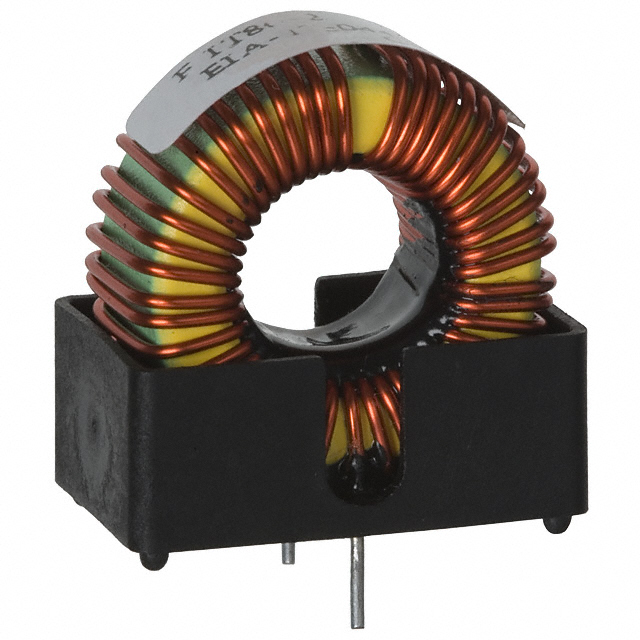

lmages are for reference only.FIT80-5
FIXED IND 47.7UH 8.1A 22.5 MOHM
DatasheetRadial, Vertical (Open)
36,892 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
47.7 µH Unshielded Toroidal Inductor 8.1 A 22.5mOhm Max Radial, Vertical (Open)
FIT80-5
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Triad Magnetics |
| Series | FIT |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Toroidal |
| Material - Core | Iron Powder |
| Inductance | 47.7 µH |
| Tolerance | - |
| Current Rating (Amps) | 8.1 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 22.5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical (Open) |
| Supplier Device Package | - |
| Size / Dimension | 0.975" L x 0.625" W (24.76mm x 15.88mm) |
| Height - Seated (Max) | 1.100" (27.94mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |
| Part Number | FIT80-1-B | FIT80-2 | FIT80-2-B | FIT80-3 |
| Manufacturer | Triad Magnetics | Triad Magnetics | Triad Magnetics | Triad Magnetics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 128UH 4A 95.2 MOHM TH | FIXED IND 107.5UH 4.8A 67.9 MOHM | FIXED IND 107.5UH 4.8A 67.9 MOHM | FIXED IND 80.75UH 5.7A 44.8 MOHM |
| Series | Triad Magnetics | Triad Magnetics | Triad Magnetics | Triad Magnetics |
| Packaging | Bulk | Bulk | Bulk | Bulk |
