Product CatalogPart Number
FKP250A
Manufacturer
Sanken Electric USA Inc.Description
MOSFET N-CH 250V 50A TO3P
Datasheet
DatasheetPackage
TO-3P-3 Full Pack
In Stock
21,129 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
FKP250A
FKP250A
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 250 V 50A (Ta) 85W (Tc) Through Hole TO-3P
Quick Inquiry
FKP250A
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Sanken Electric USA Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 250 V |
| Current - Continuous Drain (Id) @ 25°C | 50A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 43mOhm @ 25A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 1mA |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 3800 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 85W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-3P |
| Package / Case | TO-3P-3 Full Pack |
| Base Product Number | FKP250 |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |
| Part Number | FKP202 | FKP252 | FKP253 | FKP280A |
| Manufacturer | Sanken Electric USA Inc. | Sanken Electric USA Inc. | Sanken Electric USA Inc. | Sanken Electric USA Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |

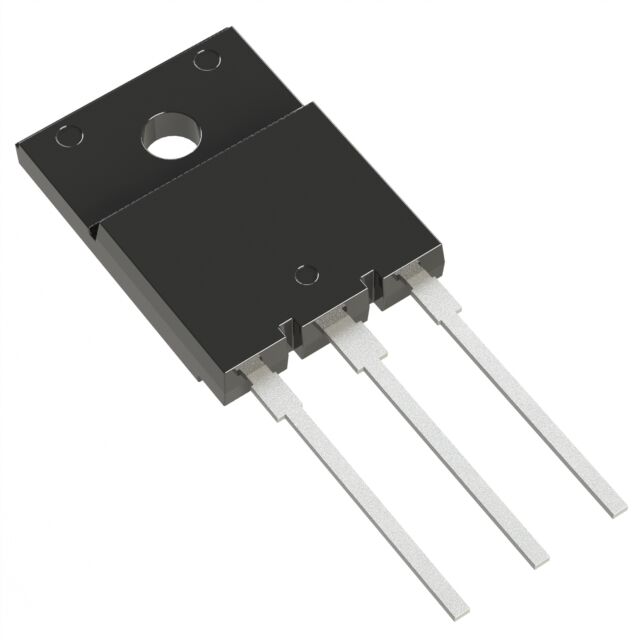

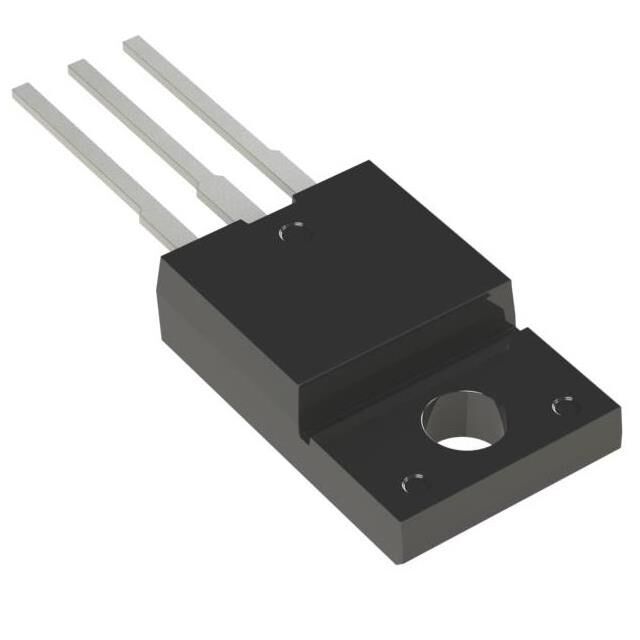

| Description | MOSFET N-CH 200V 45A TO220 | MOSFET N-CH 250V 25A TO220F | MOSFET N-CH 250V 20A TO220 | MOSFET N-CH 280V 40A TO3PF |
| Series | - | - | - | - |
| Packaging | Tube | Bulk | Tube | Tube |
