FL2D-30-103
lmages are for reference only.FL2D-30-103
COMMON MODE FILTER 10MH 3A TH
DatasheetHorizontal, 4 PC Pin
83,673 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 3A DCR 50mOhm (Typ)
FL2D-30-103
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Mornsun America, LLC |
| Series | FL2D-xx-xxx |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Filter Type | - |
| Number of Lines | 2 |
| Inductance @ Frequency | 10 mH @ 1 kHz |
| Current Rating (Max) | 3A |
| DC Resistance (DCR) (Max) | 50mOhm (Typ) |
| Voltage Rating - DC | - |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 105°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 0.965" L x 0.886" W (24.50mm x 22.50mm) |
| Height (Max) | 0.610" (15.50mm) |
| Package / Case | Horizontal, 4 PC Pin |
| Base Product Number | - |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

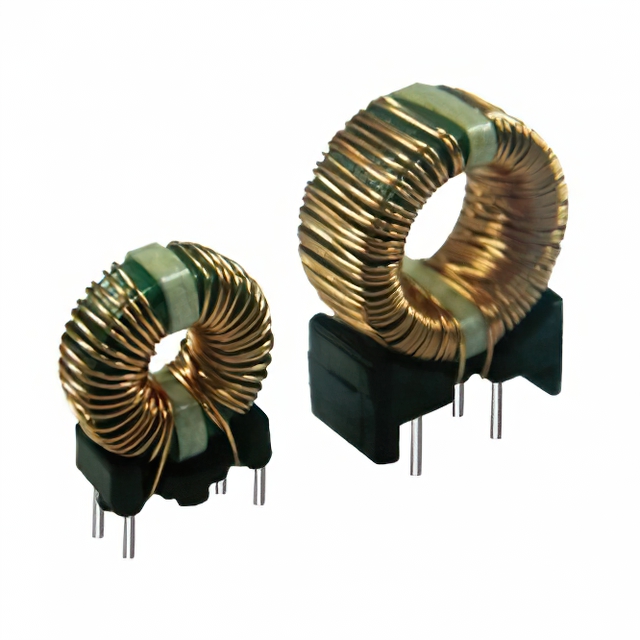

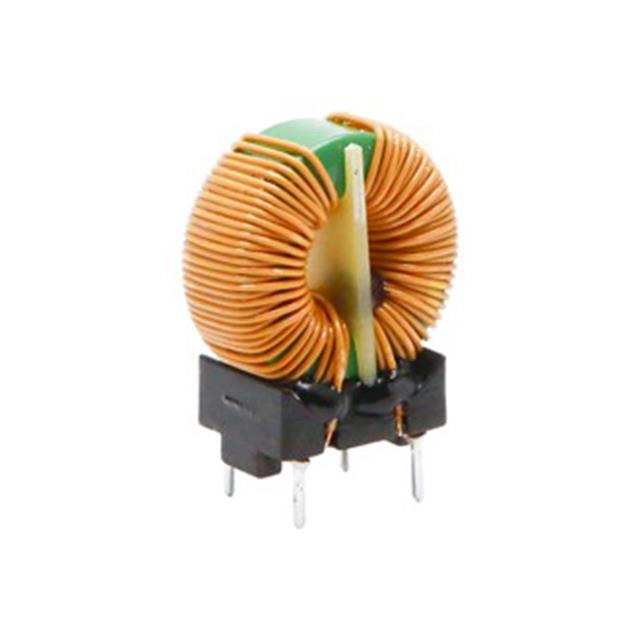

| Part Number | FL2D-30-102 | FL2D-30-102B | FL2D-30-103B | FL2D-30-222 |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 1MH 2 LINE COMMON MODE CHOKE THR | 1MH @ 10 KHZ 2 LINE COMMON MODE | 10MH @ 10 KHZ 2 LINE COMMON MODE | 2.2MH 2 LINE COMMON MODE CHOKE T |
| Series | FL2D-xx-xxx | FL2D-30-xxxB | FL2D-30-xxxB | FL2D-xx-xxx |
| Packaging | Tray | Tray | Tray | Tray |
