FLHP3200
lmages are for reference only.FLHP3200
3 POSITION,RECEPTACLE,PIN,PCB MO
Datasheet-
13,802 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Connector Header Through Hole, Right Angle 3 position 0.098" (2.50mm)
FLHP3200
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Amphenol ICC (Commercial Products) |
| Series | BrightConnX™ FLH |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.098" (2.50mm) |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | 0.088" (2.24mm) |
| Overall Contact Length | - |
| Insulation Height | 0.537" (13.64mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Thermoplastic |
| Features | Board Guide, Mounting Flange |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 7A |
| Voltage Rating | - |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

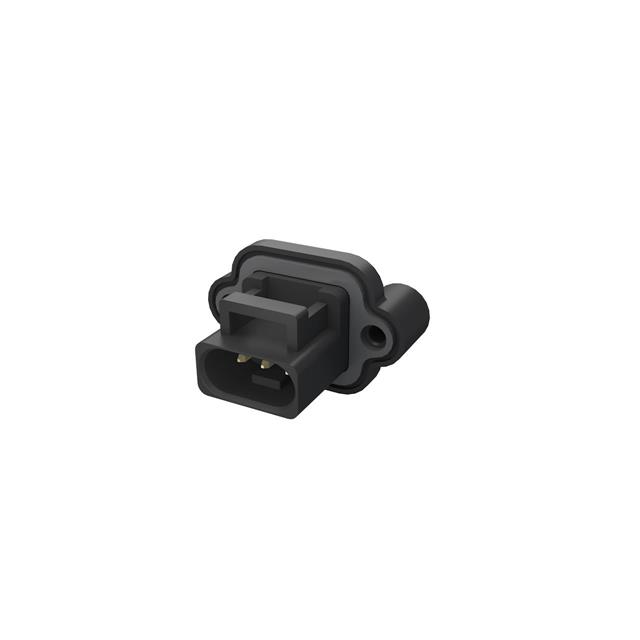

| Part Number | FLHP3201 | FLHP3202 | FLHP3203 | FL10F012HA1R3000 |
| Manufacturer | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | JAE Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | 3 POSITION,RECEPTACLE,PIN,PCB MO | 3 POSITION,RECEPTACLE,PIN,PCB MO | 3 POSITION,RECEPTACLE,PIN,PCB MO | Interconnect Rectangular |
| Series | BrightConnX™ FLH | BrightConnX™ FLH | BrightConnX™ FLH | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
