FOD3150V
lmages are for reference only.FOD3150V
OPTOISO 5KV 1CH GATE DVR 8DIP
Datasheet8-DIP (0.300", 7.62mm)
75,456 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.5A Gate Driver Optical Coupling 5000Vrms 1 Channel 8-DIP
FOD3150V
| Category | Isolators - Isolators Gate Drivers - |
| Manufacturer | Fairchild Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Technology | Optical Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 20kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 500ns, 500ns |
| Pulse Width Distortion (Max) | 300ns |
| Rise / Fall Time (Typ) | 60ns, 60ns |
| Current - Output High, Low | 1A, 1A |
| Current - Peak Output | 1.5A |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Voltage - Output Supply | 15V ~ 30V |
| Grade | - |
| Qualification | - |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP |
| Approval Agency | IEC, UL |
| Base Product Number | - |
| Current - DC Forward (If) (Max) | 25 mA |
| Product Attribute |  |
 |
 |
 |

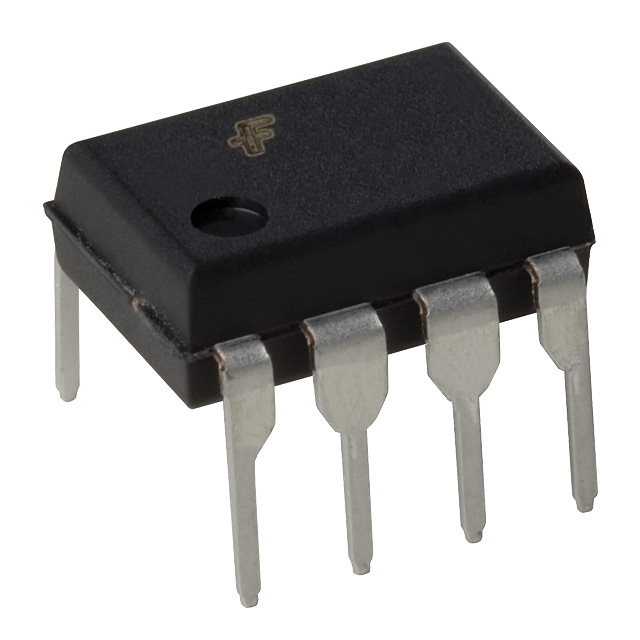

| Part Number | FOD3150 | FOD3150 | FOD3150A | FOD3150ASD |
| Manufacturer | onsemi | Fairchild Semiconductor | onsemi | onsemi |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | OPTOISO 5KV 1CH GATE DVR 8DIP | OPTOISO 5KV 1CH GATE DVR 8DIP | OPTOISO 5KV 1CH GATE DVR 8DIP | OPTOISO 5KV 1CH GATE DVR 8SMD |
| Series | onsemi | Fairchild Semiconductor | onsemi | onsemi |
| Packaging | Tube | Bulk | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
