Product CatalogPart Number
FR01KR10H
Manufacturer
NKK SwitchesDescription
SWITCH ROTARY DIP BCD 0.1A 5V
Datasheet
DatasheetPackage
-
In Stock
71,459 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
FR01KR10H
FR01KR10H

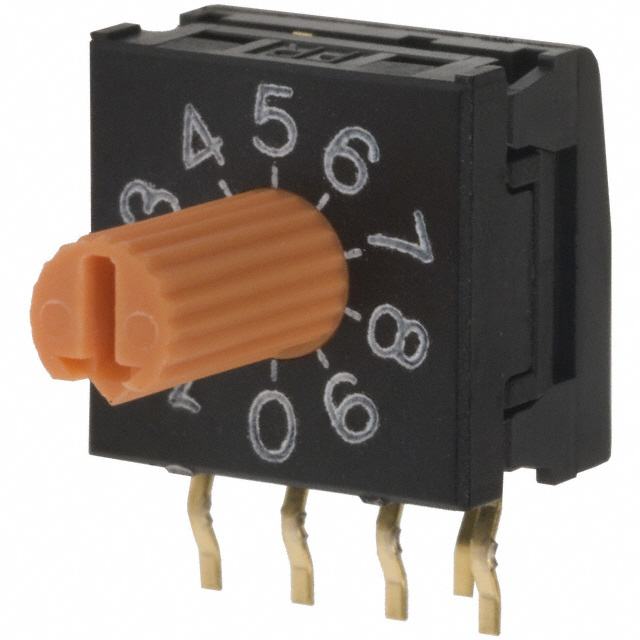

lmages are for reference only.Payment Methods
Delivery Services
Dip Switch BCD 10 Position Through Hole, Right Angle Rotary with Shaft Actuator 100mA 5VDC
Quick Inquiry
FR01KR10H
Specifications
| Category | Switches - DIP Switches - |
| Manufacturer | NKK Switches |
| Series | FR01 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Circuit | BCD |
| Number of Positions | 10 |
| Current Rating (Amps) | 100mA |
| Voltage Rating | 5VDC |
| Actuator Type | Rotary with Shaft |
| Actuator Level | Raised |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Height Above Board | 0.394" (10.00mm) |
| Mounting Type | Through Hole, Right Angle |
| Termination Style | PC Pin |
| Pitch | 0.100" (2.54mm), Full |
| Washable | No |
| Features | - |
| Operating Temperature | -25°C ~ 85°C |
| Body Material | Polyamide (PA), Nylon, Glass Filled |
| Length | 0.394" (10.00mm) |
| Mechanical Life | 10,000 Steps |
| Electrical Life | 10,000 Steps |
| Base Product Number | FR01KR10 |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
 |
| Part Number | FR01KR10H-06XL | FR01KR10H-06XL-S | FR01KR10H-06XL-W | FR01KR10H-S |
| Manufacturer | NKK Switches | NKK Switches | NKK Switches | NKK Switches |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SWITCH ROTARY DIP BCD 0.1A 5V | SWITCH ROTARY DIP BCD 0.1A 5V | SWITCH ROTARY DIP BCD 0.1A 5V | SWITCH ROTARY DIP BCD 0.1A 5V |
| Series | FR01 | FR01 | FR01 | FR01 |
| Packaging | Bulk | Tube | Bulk | Tube |
