Product CatalogPart Number
FR202G
Manufacturer
SMC Diode SolutionsDescription
DIODE GEN PURP 100V 2A DO15
Datasheet
DatasheetPackage
DO-204AC, DO-15, Axial
In Stock
72,558 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

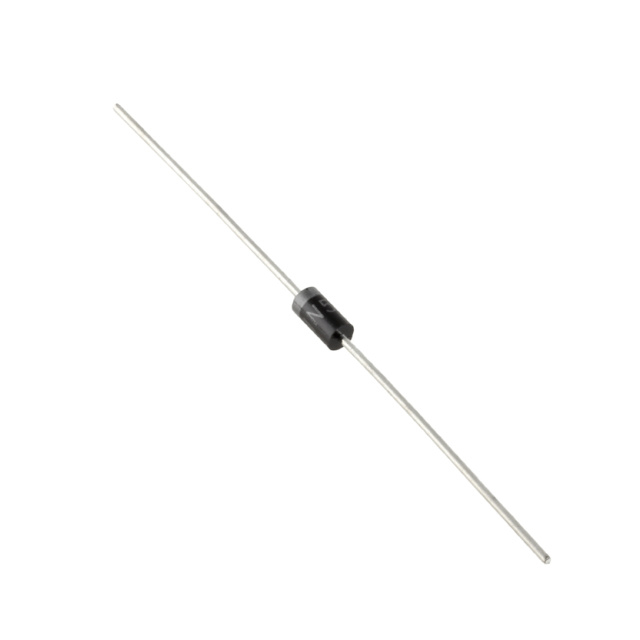

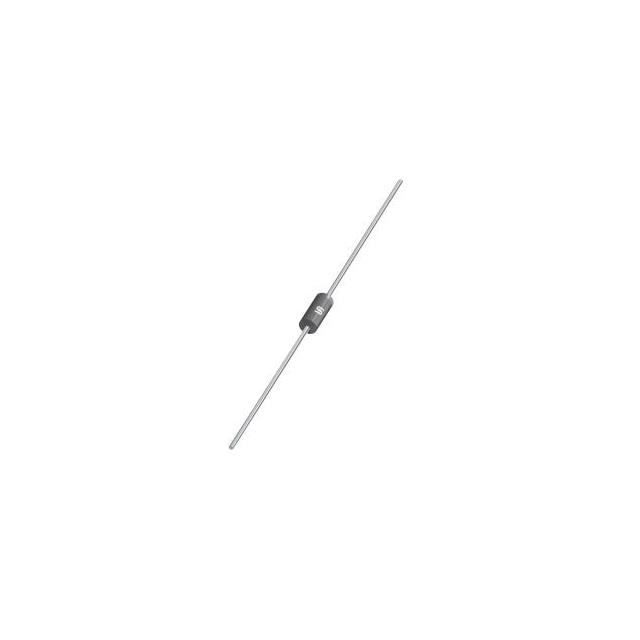

FR202G
FR202G
lmages are for reference only.Payment Methods
Delivery Services
Diode 100 V 2A Through Hole DO-15
Quick Inquiry
FR202G
Specifications
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | SMC Diode Solutions |
| Series | - |
| Packaging | Tape & Box (TB) |
| RoHS Status | ROHS3 Compliant |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Current - Average Rectified (Io) | 2A |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 2 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 150 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 70 V |
| Capacitance @ Vr, F | 40pF @ 4V, 1MHz |
| Mounting Type | Through Hole |
| Package / Case | DO-204AC, DO-15, Axial |
| Supplier Device Package | DO-15 |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Base Product Number | FR20 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
|
|
 |
| Part Number | FR202 | FR202-AP | FR202G R0G | FR202G-T |
| Manufacturer | SMC Diode Solutions | Micro Commercial Co | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | DIODE GEN PURP 100V 2A DO15 | DIODE GEN PURP 100V 2A DO15 | DIODE GEN PURP 100V 2A DO204AC | 150NS, 2A, 100V, FAST RECOVERY R |
| Series | - | - | - | - |
| Packaging | Tape & Box (TB) | Tape & Box (TB) | Tape & Reel (TR) | Tape & Reel (TR) |
