FSA646UCX
lmages are for reference only.FSA646UCX
2:1 MIPI D-PHY (2.5GBPS) 4-DATA
Datasheet36-UFBGA, WLCSP
46,353 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
MIPI Switch IC 4 Channel 36-WLCSP (2.43x2.43)
FSA646UCX
| Category | Integrated Circuits (ICs) - Interface - Analog Switches Special Purpose |
| Manufacturer | Fairchild Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Applications | MIPI |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Switch Circuit | SPDT |
| Number of Channels | 4 |
| On-State Resistance (Max) | 6Ohm (Typ) |
| Voltage - Supply, Single (V+) | 1.5V ~ 5V |
| Voltage - Supply, Dual (V±) | - |
| -3db Bandwidth | 2.5GHz |
| Features | Break-Before-Make |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 36-UFBGA, WLCSP |
| Supplier Device Package | 36-WLCSP (2.43x2.43) |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
|

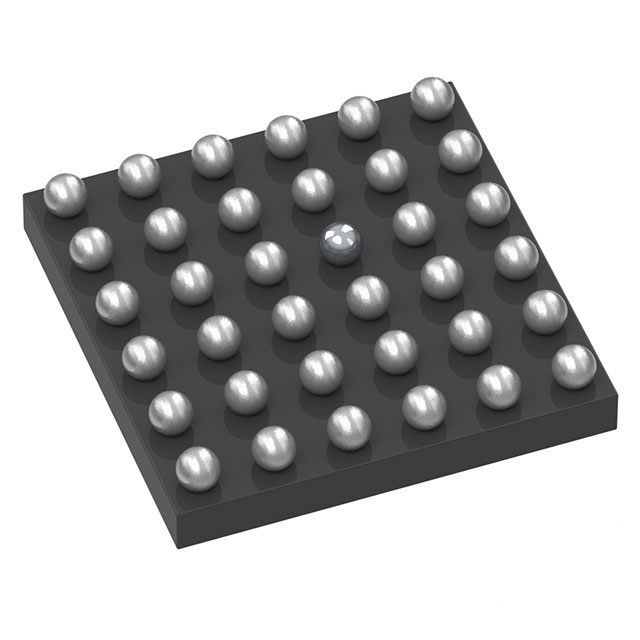

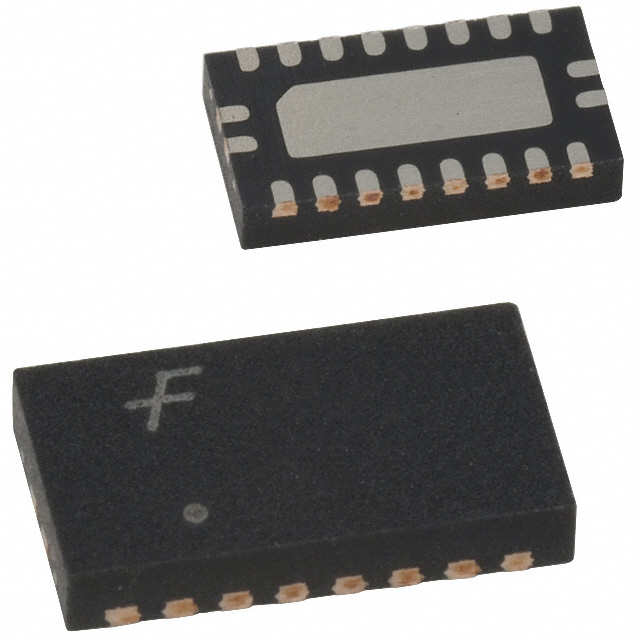

| Part Number | FSA646AUCX | FSA646UCX | FSA1208BQX | FSA1208BQX |
| Manufacturer | onsemi | onsemi | Fairchild Semiconductor | onsemi |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IC SWITCH SPDT 36-WLCSP | 2:1 MIPI D-PHY(2.5GBPS) 4-DATA L | LOW-POWER, EIGHT-PORT, HIGH-SPEE | IC SWITCH OCTAL SPST 20DQFN |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) |
