FSMIJ63AA04
lmages are for reference only.FSMIJ63AA04
SWITCH TACTILE SPST-NO 0.05A 12V
Datasheet-
97,078 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Tactile Switch SPST-NO Top Actuated Through Hole
FSMIJ63AA04
| Category | Switches - Tactile Switches - |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Series | FSMIJ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Actuator Type | Plunger for Cap |
| Mounting Type | Through Hole |
| Actuator Height off PCB, Vertical | - |
| Actuator Length, Right Angle | - |
| Actuator Orientation | Top Actuated |
| Termination Style | PC Pin |
| Outline | 6.00mm x 6.00mm |
| Illumination | Illuminated |
| Illumination Type, Color | LED, Orange |
| Illumination Voltage (Nominal) | - |
| Operating Force | 260gf |
| Ingress Protection | - |
| Features | Tactile/Audible Feedback |
| Operating Temperature | -25°C ~ 70°C |
| Actuator Material | Thermoplastic |
| Switch Travel | 0.20mm |
| Mechanical Life | 200,000 Cycles |
| Base Product Number | FSMIJ63 |
| Product Attribute |  |
 |
 |
|

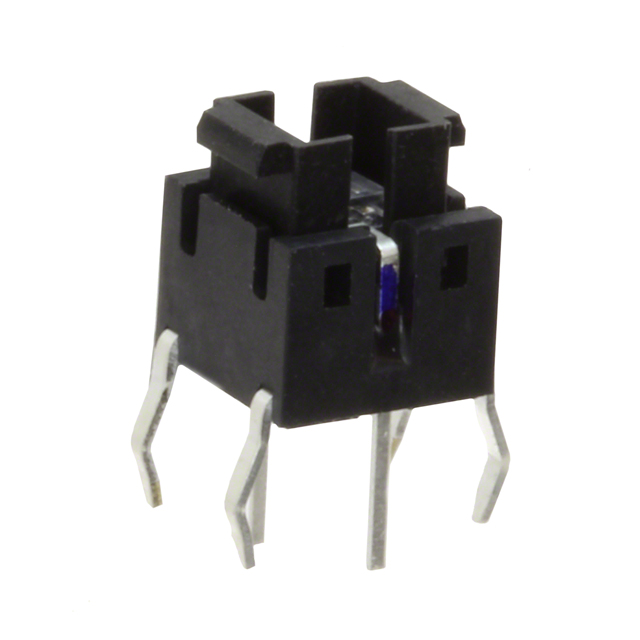

| Part Number | FSMIJ63AB04 | FSMIJ63AG04 | FSMIJ63AO04 | FSMIJ63APG04 |
| Manufacturer | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | Not applicable | ROHS3 Compliant |
| Description | SWITCH TACTILE SPST-NO 0.05A 12V | SWITCH TACTILE SPST-NO 0.05A 12V | SWITCH TACTILE SPST-NO 0.05A 12V | SWITCH TACTILE SPST-NO 0.05A 12V |
| Series | FSMIJ | FSMIJ | FSMIJ | FSMIJ |
| Packaging | Tube | Tube | Tube | Tube |
