FWJ-150A
lmages are for reference only.FWJ-150A
FUSE CARTRIDGE 150A 1KVAC/800VDC
DatasheetCylindrical, Blade Terminal (Bolt)
56,872 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
150A 1 kVAC 800 VDC Fuse Cartridge Bolt Mount
FWJ-150A
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Eaton - Bussmann Electrical Division |
| Series | FWJ |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Mounting Type | Bolt Mount |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 150A |
| Voltage Rating - AC | 1 kVAC |
| Response Time | - |
| Applications | Electrical, Industrial |
| Features | - |
| Class | - |
| Approval Agency | CE, UR |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 25kA AC, 50kA DC |
| Package / Case | Cylindrical, Blade Terminal (Bolt) |
| Size / Dimension | 1.526" Dia x 5.685" L (38.76mm x 144.40mm) |
| Base Product Number | - |
| Voltage Rating - DC | 800 VDC |
| Grade | - |
| Qualification | - |
| Melting I²t | 6300.0 |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |

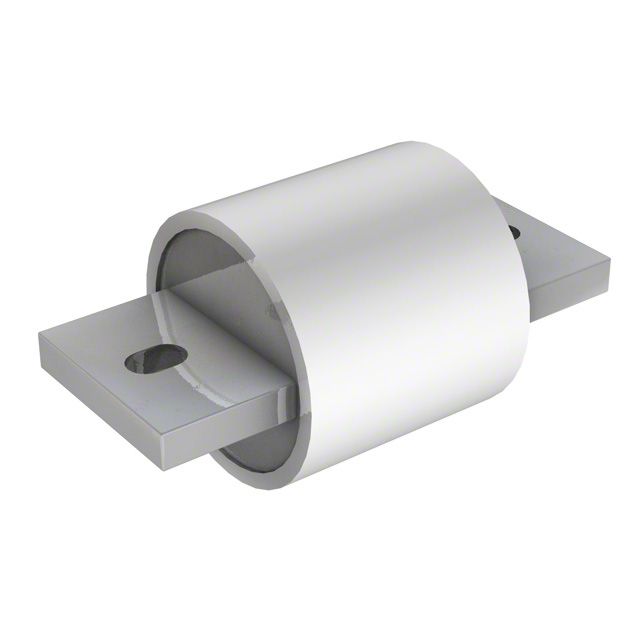

| Part Number | FWJ-1000A | FWJ-1200A | FWJ-125A | FWJ-1400A |
| Manufacturer | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | FUSE CARTRIDGE 1KA 1KVAC/800VDC | FUSE CRTRDGE 1.2KA 1KVAC/800VDC | FUSE CARTRIDGE 125A 1KVAC/800VDC | FUSE CRTRDGE 1.4KA 1KVAC/800VDC |
| Series | FWJ | FWJ | FWJ | FWJ |
| Packaging | Bulk | Bulk | Bulk | Bulk |
