FWL-30A20F

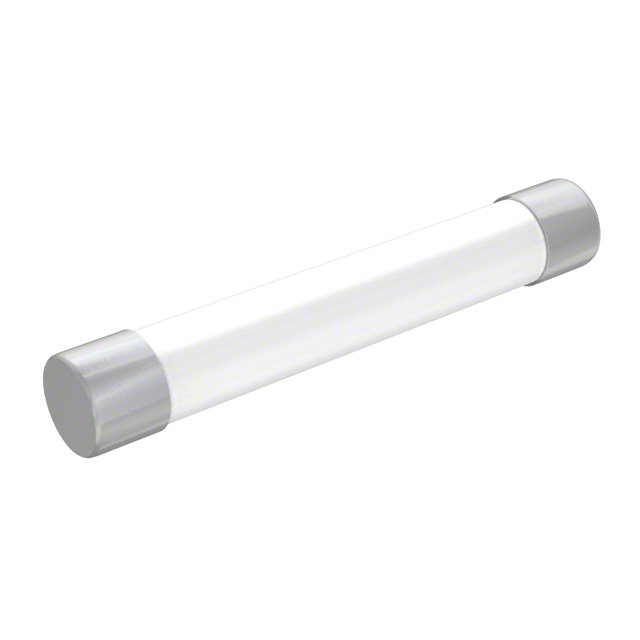

lmages are for reference only.FWL-30A20F
FUSE CARTRIDGE 30A 1.2KVAC/1KVDC
DatasheetCartridge, Non-Standard
75,387 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
30A 1.2 kVAC 1 kVDC Fuse Cartridge Requires Holder
FWL-30A20F
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Eaton - Bussmann Electrical Division |
| Series | FWL |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Mounting Type | Requires Holder |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 30A |
| Voltage Rating - AC | 1.2 kVAC |
| Response Time | - |
| Applications | Electrical, Industrial |
| Features | - |
| Class | - |
| Approval Agency | CE |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 45kA AC, 30kA DC |
| Package / Case | Cartridge, Non-Standard |
| Size / Dimension | 0.807" Dia x 5.000" L (20.50mm x 127.00mm) |
| Base Product Number | - |
| Voltage Rating - DC | 1 kVDC |
| Grade | - |
| Qualification | - |
| Melting I²t | 1850.0 |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | FWL-30A20FI | FWL-20A20F | FWL-20A20FI | FWL-25A20F |
| Manufacturer | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | FUSE CARTRIDGE 30A 1.2KVAC/1KVDC | FUSE CARTRIDGE 20A 1.2KVAC/1KVDC | FUSE CARTRIDGE 20A 1.2KVAC/1KVDC | FUSE CARTRIDGE 25A 1.2KVAC/1KVDC |
| Series | FWL | FWL | FWL | FWL |
| Packaging | Bulk | Bulk | Bulk | Bulk |
