G1003A
lmages are for reference only.G1003A
N100V,RD(MAX)<210M@10V,RD(MAX)<2
DatasheetTO-236-3, SC-59, SOT-23-3
59,562 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 100 V 3A (Tc) 1.5W (Tc) Surface Mount SOT-23-3
G1003A
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Goford Semiconductor |
| Series | TrenchFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 3A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 120mOhm @ 3A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 532 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.5W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-3 |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 17 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

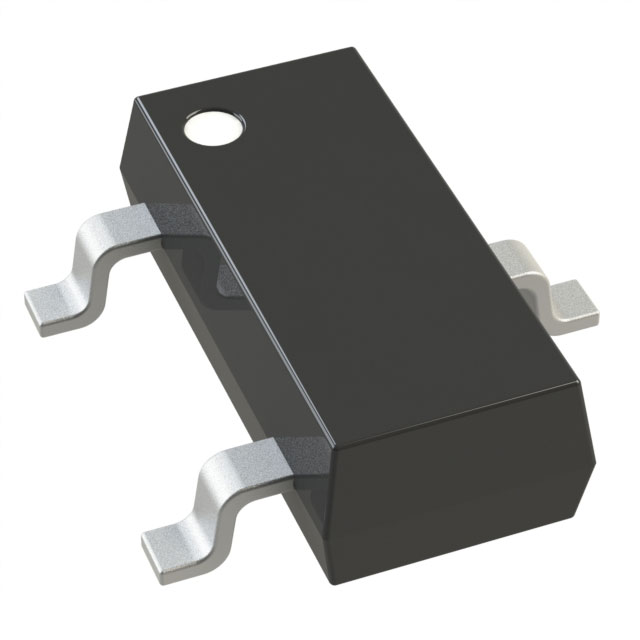

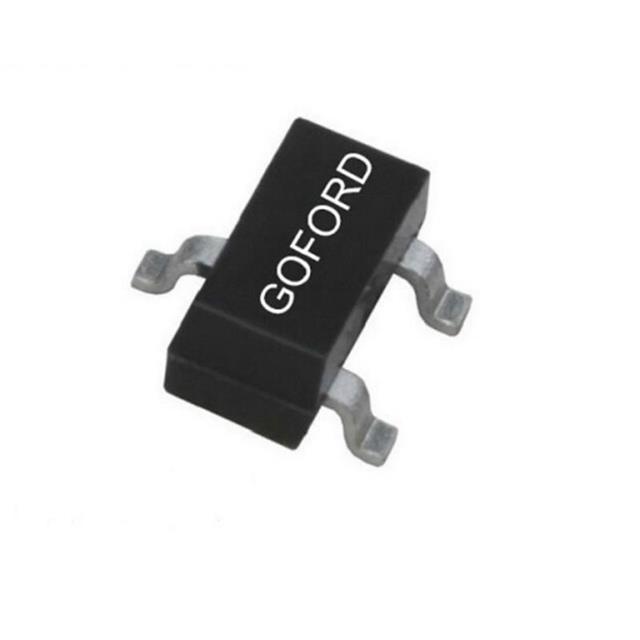

| Part Number | G1003B | G1002 | G1002L | G1006LE |
| Manufacturer | Goford Semiconductor | Goford Semiconductor | Goford Semiconductor | Goford Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | N100V,RD(MAX)<170M@10V,RD(MAX)<1 | MOSFET N-CH 100V 2A 1.3W SOT-23 | N100V,RD(MAX)<250M@10V,VTH1.2V~2 | N100V,RD(MAX)<150M@10V,RD(MAX)<1 |
| Series | TrenchFET® | TrenchFET® | TrenchFET® | TrenchFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
