Product CatalogPart Number
G125-FV10805F3-2AB2ABP
Manufacturer
Harwin Inc.Description
CONN F-HDR 4PWR 8SIG PCB VERT
Datasheet
DatasheetPackage
-
In Stock
37,744 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
G125-FV10805F3-2AB2ABP
G125-FV10805F3-2AB2ABP

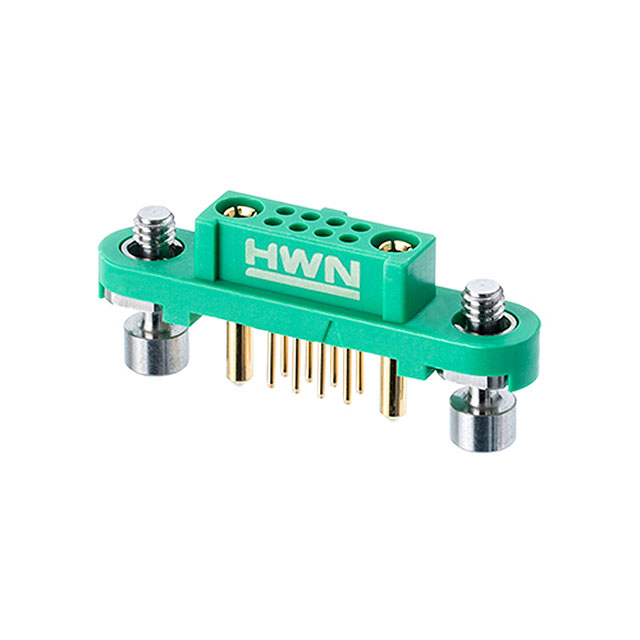

lmages are for reference only.Payment Methods
Delivery Services
12 (8 + 4 Power) Position Receptacle Connector 0.049" (1.25mm) Through Hole Gold
Quick Inquiry
G125-FV10805F3-2AB2ABP
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Receptacles-Female Sockets |
| Manufacturer | Harwin Inc. |
| Series | Gecko MT Reverse Fix |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 12 (8 + 4 Power) |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.049" (1.25mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.049" (1.25mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Screw Lock |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Insulation Color | Green |
| Insulation Height | 0.207" (5.25mm) |
| Contact Length - Post | 0.118" (3.00mm) |
| Operating Temperature | -65°C ~ 150°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Gold |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Mating Flange, Mounting Flange, Pick and Place, Polarizing Key |
| Current Rating (Amps) | 2A, 10A |
| Voltage Rating | 450V |
| Applications | - |
| Insulation Material | Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free |
| Contact Shape | Circular |
| Contact Material | Beryllium Copper |
| Contact Finish Thickness - Post | - |
| Base Product Number | G125-FV1 |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
|
| Part Number | G125-FV10805F3-2AB2ABP | G125-FV10805F3-2AB2ABR | G125-FV10805F1-1AB1ABP | G125-FV10805F1-1AB1ABR |
| Manufacturer | Harwin Inc. | Harwin Inc. | Harwin Inc. | Harwin Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | CONN F-HDR 4PWR 8SIG PCB VERT | 8+4 POS. FEMALE VERTICAL THROUGH | CONN F-HDR 2PWR 8SIG PCB VERT | 8+2 POS. FEMALE VERTICAL THROUGH |
| Series | Harwin Inc. | Harwin Inc. | Harwin Inc. | Harwin Inc. |
| Packaging | Strip | Bulk | Strip | Bulk |
