Product CatalogPart Number
G125-MH11205L3R
Manufacturer
Harwin Inc.Description
CONN HDR R/A 12POS
Datasheet
DatasheetPackage
-
In Stock
14,504 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

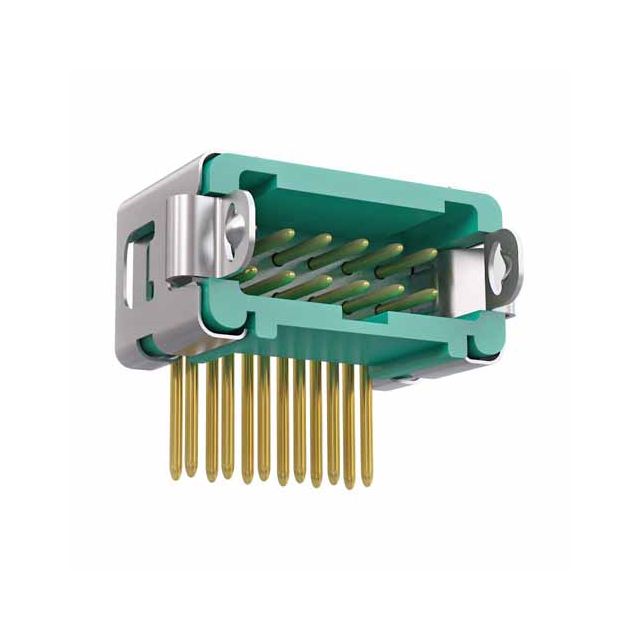

G125-MH11205L3R
G125-MH11205L3R
lmages are for reference only.Payment Methods
Delivery Services
Connector Header Through Hole, Right Angle 12 position 0.049" (1.25mm)
Quick Inquiry
G125-MH11205L3R
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Harwin Inc. |
| Series | Datamate L-Tek |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.049" (1.25mm) |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.049" (1.25mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | 0.126" (3.20mm) |
| Overall Contact Length | - |
| Insulation Height | 0.218" (5.55mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Gold |
| Contact Material | Phosphor Bronze |
| Insulation Material | Polyamide (PA4T), Nylon 4T |
| Features | - |
| Operating Temperature | -65°C ~ 150°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Green |
| Current Rating (Amps) | 2A |
| Voltage Rating | - |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | - |
| Base Product Number | G125-MH1 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

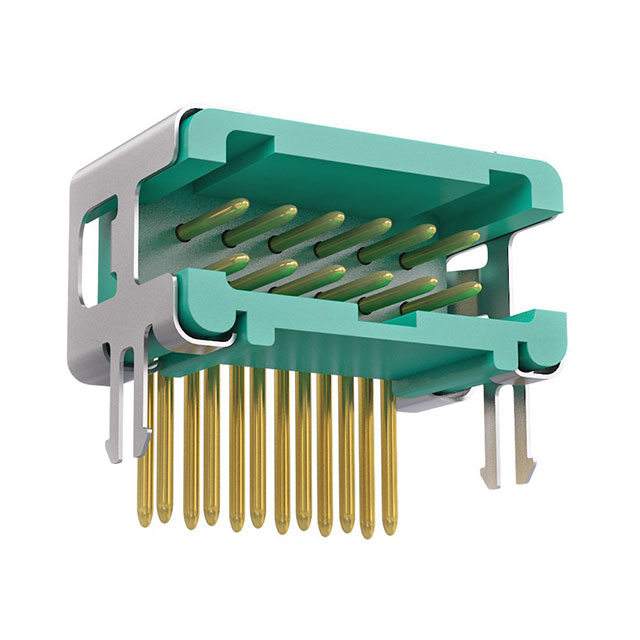

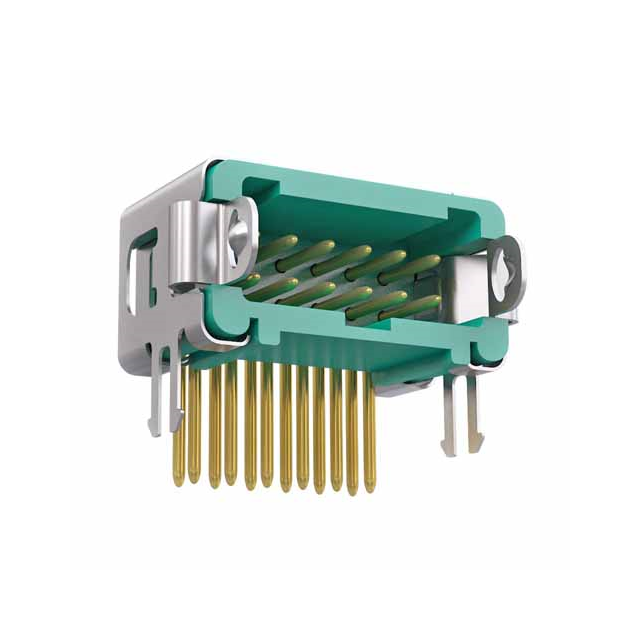

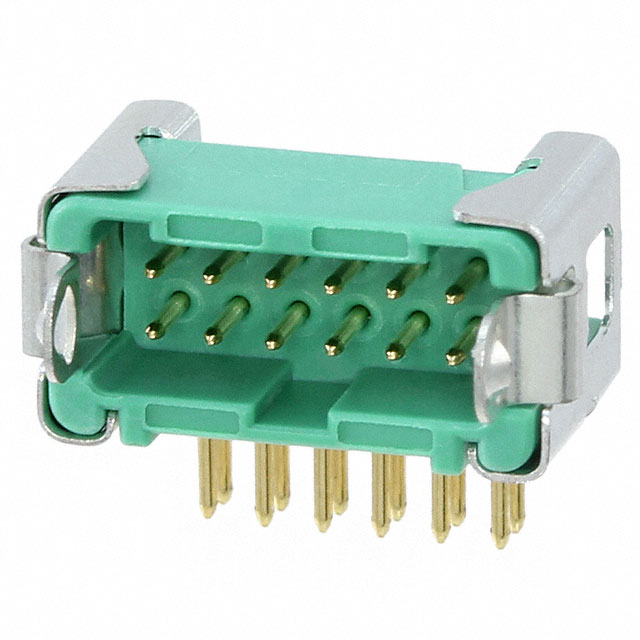

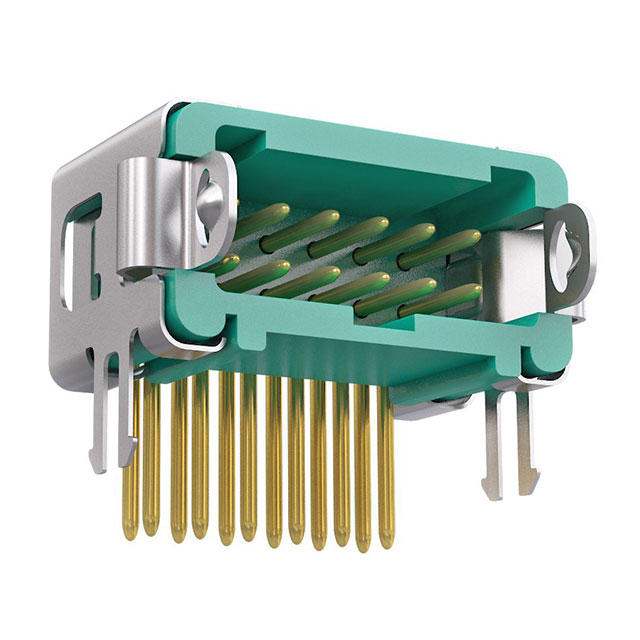

| Part Number | G125-MH11205L3P | G125-MH11205L1P | G125-MH11205L1R | G125-MH11205L5P |
| Manufacturer | Harwin Inc. | Harwin Inc. | Harwin Inc. | Harwin Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CONN HEADER R/A 12POS 1.25MM | CONN HEADER R/A 12POS 1.25MM | CONN HDR R/A 12POS | CONN HEADER R/A 12POS 1.25MM |
| Series | Gecko | Gecko | Gecko | Gecko |
| Packaging | Strip | Strip | Tape & Reel (TR) | Strip |
