Product CatalogPart Number
G125-MS10605L2P
Manufacturer
Harwin Inc.Description
CONN HDR VERT 6POS
Datasheet
DatasheetPackage
-
In Stock
75,371 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
G125-MS10605L2P
G125-MS10605L2P
lmages are for reference only.Payment Methods
Delivery Services
Connector Header Surface Mount 6 position 0.049" (1.25mm)
Quick Inquiry
G125-MS10605L2P
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Harwin Inc. |
| Series | Gecko |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.049" (1.25mm) |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.049" (1.25mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Latch Lock |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.193" (4.90mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | Gold |
| Contact Material | Phosphor Bronze |
| Insulation Material | Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free |
| Features | Board Lock |
| Operating Temperature | -65°C ~ 150°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 2A |
| Voltage Rating | 450VAC/DC |
| Mated Stacking Heights | 7.23mm, 7.31mm |
| Contact Finish Thickness - Post | 8.00µin (0.203µm) |
| Applications | - |
| Base Product Number | G125-MS1 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

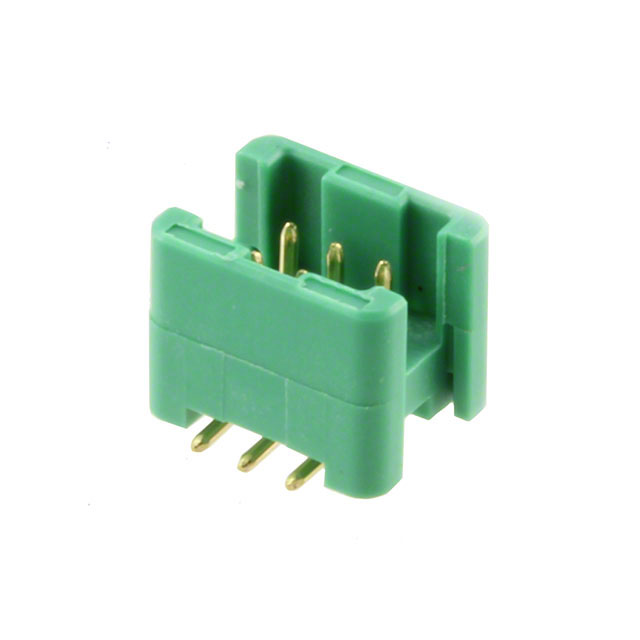

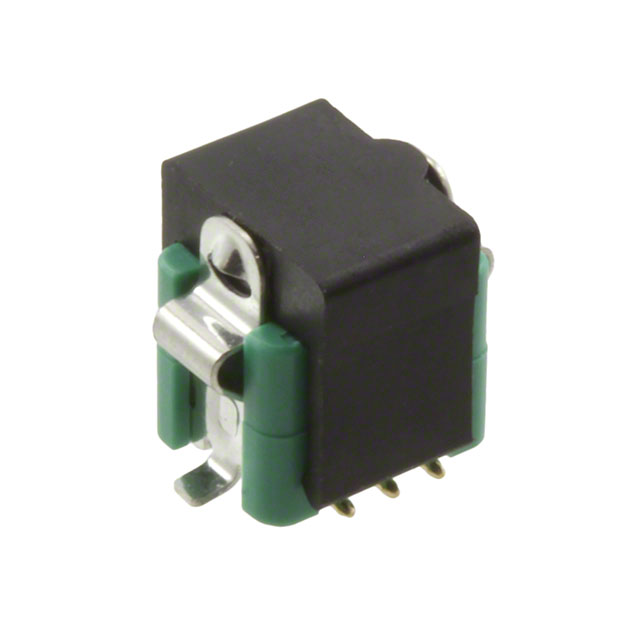

| Part Number | G125-MS10605L0P | G125-MS10605L1P | G125-MS10605L1R | G125-MS10605L3P |
| Manufacturer | Harwin Inc. | Harwin Inc. | Harwin Inc. | Harwin Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CONN HEADER SMD 6POS 1.25MM | CONN HDR VERT 6POS | CONN HDR VERT 6POS | CONN HEADER SMD 6POS 1.25MM |
| Series | Gecko | Gecko | Gecko | Gecko |
| Packaging | Bag | Strip | Tape & Reel (TR) | Strip |
